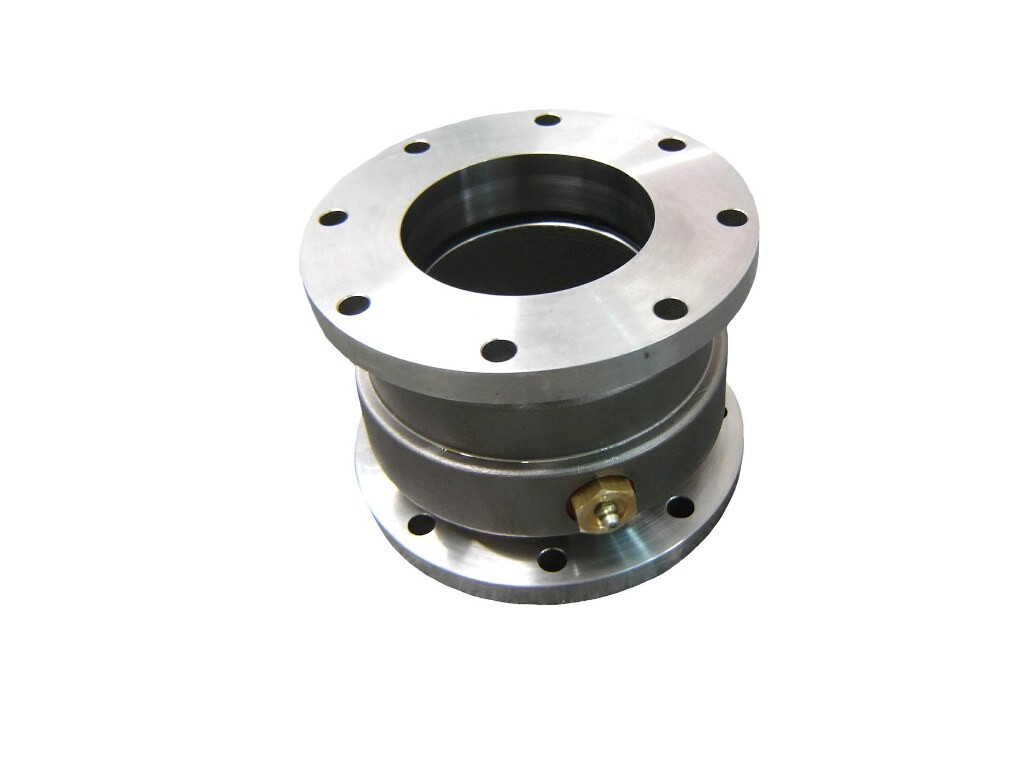

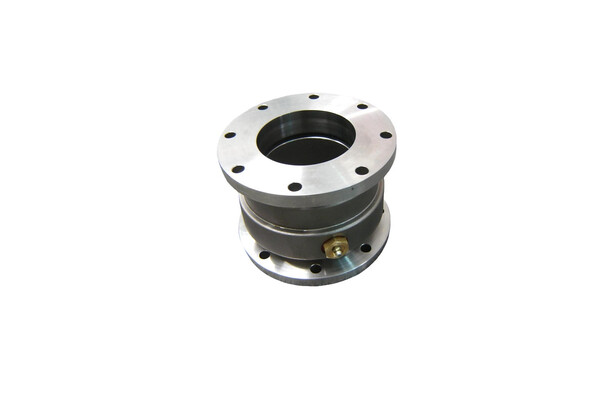

Single Plane Swivels - Stainless Steel



Liquip offers a range of straight swivel joints for the fabrication of loading arms and pipe work requiring up to 360° rotation.

Liquip swivels offer exceptional performance and reduced downtime and maintenance.

Features & Benefits
  • Cost-effective way of achieving a rotating joint, for loading arms or machinery.
  • Heavy-duty stainless steel construction.
  • Incorporates the well-known high load, low wear Liquip principle of ball with needle bearing combination.
  • Purpose designed primary face seal and multiple seals for added safety.
  • 4" TTMA flange to suit industry loading arms.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Materials
    Bodies – Stainless steel 316L.

    Seals
    Viton or Teflon.

    Working Pressure
    900 kPa.

    Test Pressure
    1,500 kPa.

    Mounting
    4" TTMA.

    Weight
    9 kg.

    Ordering Information

    SJF101L - Stainless Steel Flanged Swivel Joint – 100mm TTMA Flanges, Viton Main Seal.

    SJF101T - Stainless Steel Flanged Swivel Joint – 100mm TTMA Flanges, Teflon Main Seal.



    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    SJF101L Stainless Steel Flanged Swivel Joint – 100mm TTMA Flanges, Viton Main Seal.
    SJF101T Stainless Steel Flanged Swivel Joint – 100mm TTMA Flanges, Teflon Main Seal.
