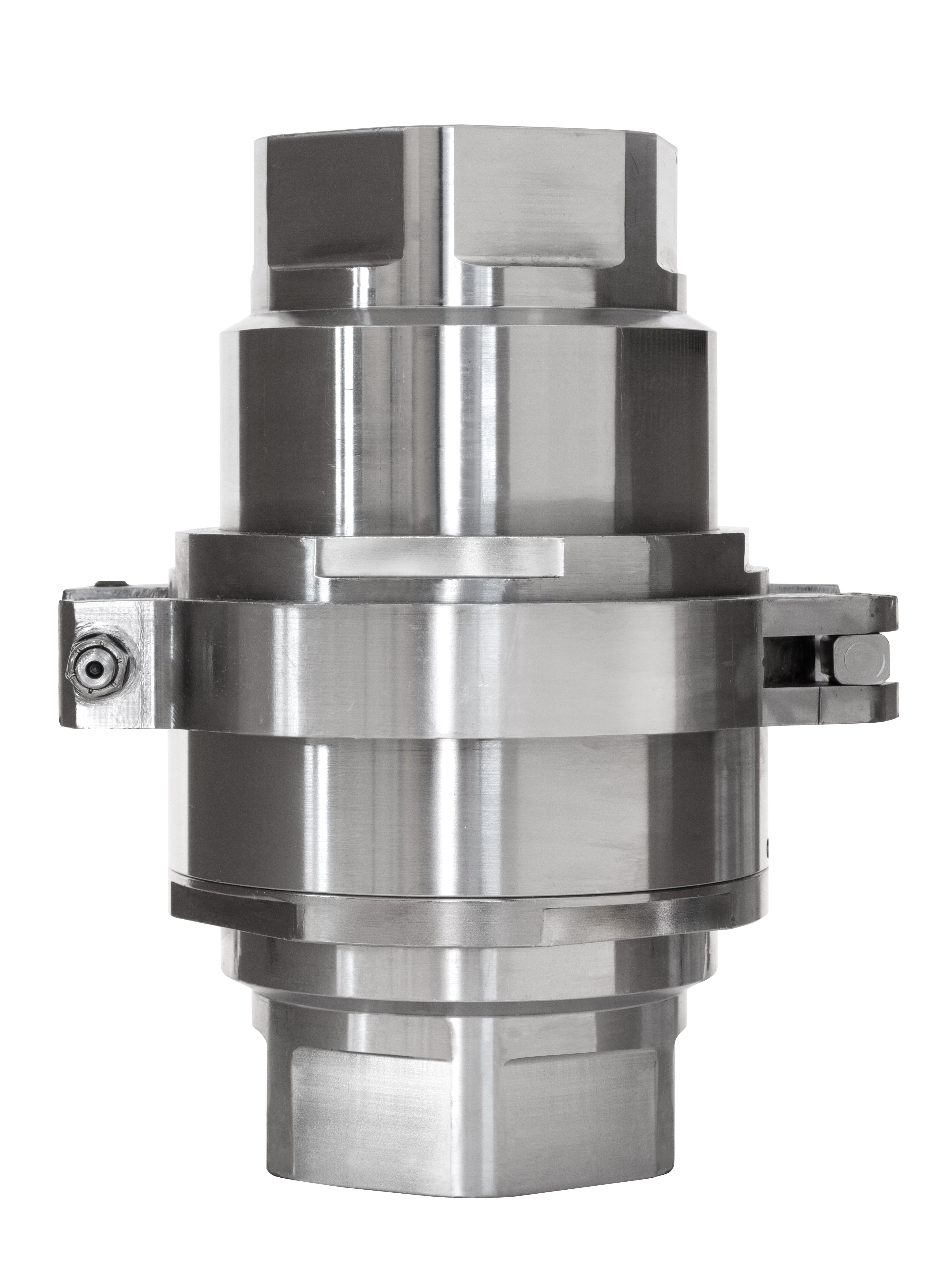

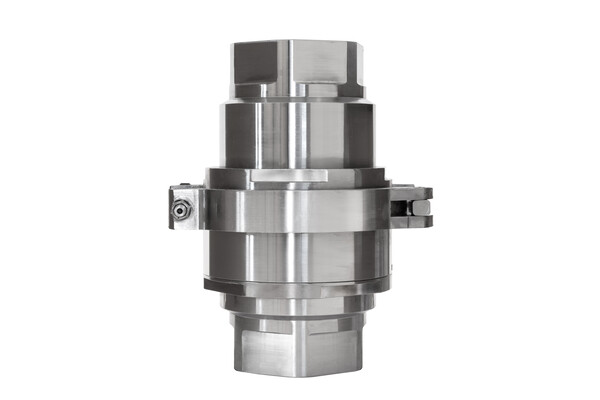

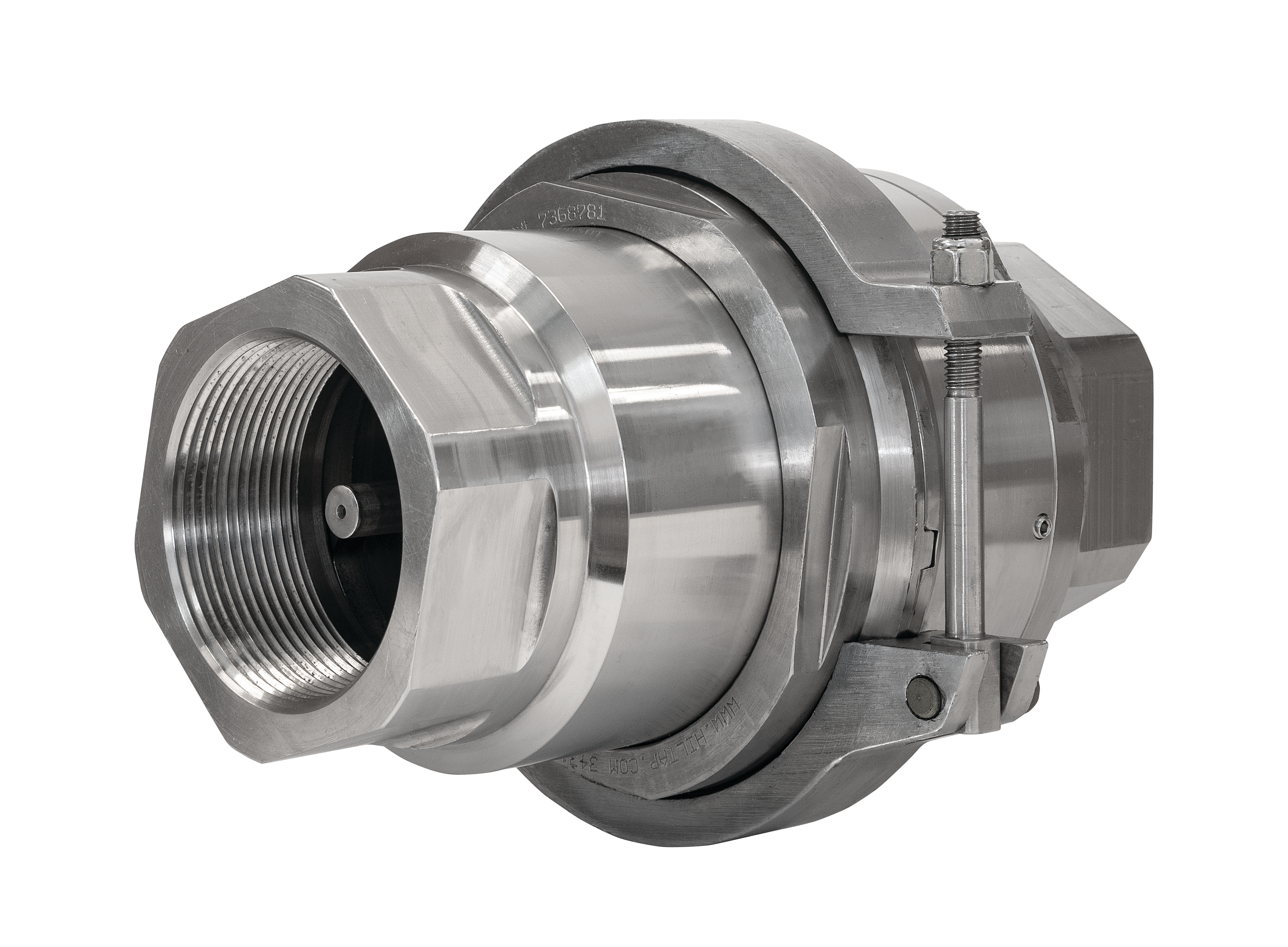

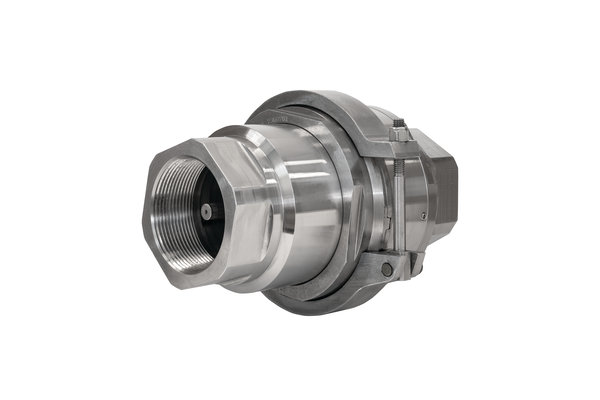

HBA Breakaway



The HBA Breakaway is engineered as a safety device that can help prevent damage to pipes and accidental spills should a truck or rail car accidentally pull away without disconnecting. The HBA breakaway family is designed to ASME B31.3 standards and is manufactured to ISO standards .

Features & Benefits
  • Prevents costly damage to dispensers – Pulls apart at less the designed pull force during drive-offs.
  • Prevents hazardous and costly clean up – Unique double poppet design closes leak path from both dispenser and separated hose side.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Info

    Specifications
    • Connections: FNPT or Butt Weld
    • Sizes: 1”, 2”, 3”


    Design working pressure
    Max. Pressure: 360 P (2.5 Mpa)
    @ -20 to 200ºF (-29 to 93ºC).

    Materials
    • Body: 316 Stainless Steel
    • Seals: Fluorocarbon, Aflas,
    EPDM, PTFE, Kalrez®, Chemraz®,





    Ordering Info



    Please CONTACT LIQUIP for all ordering information
