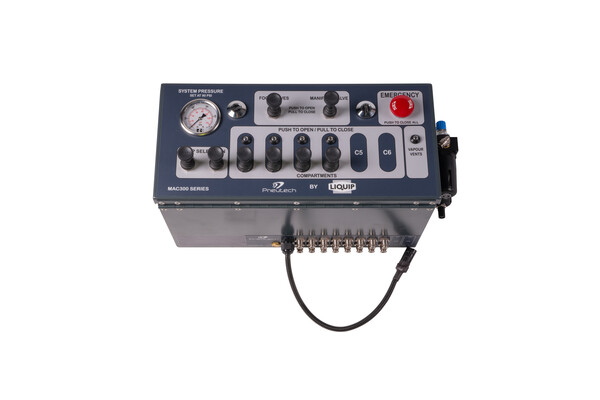

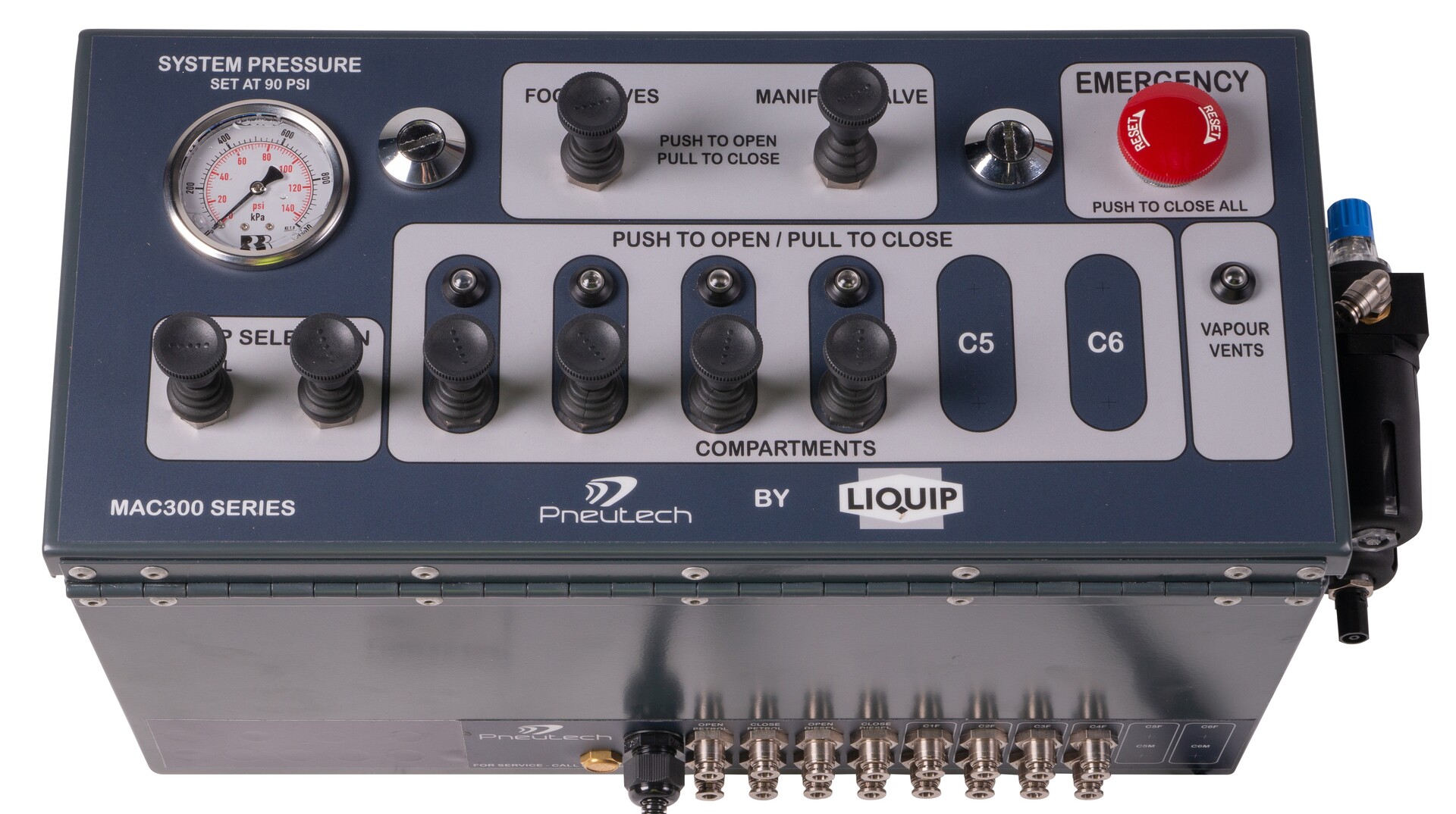

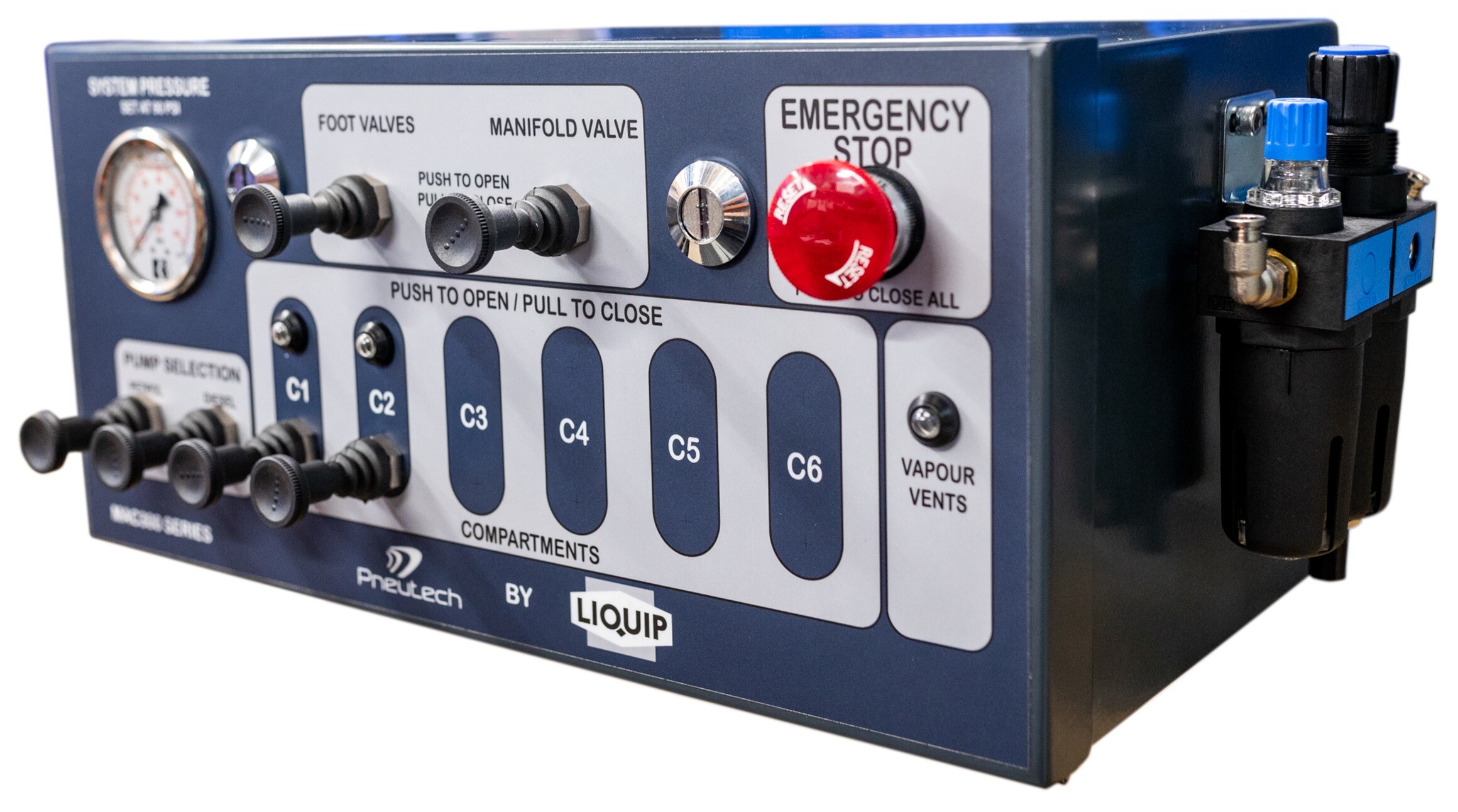

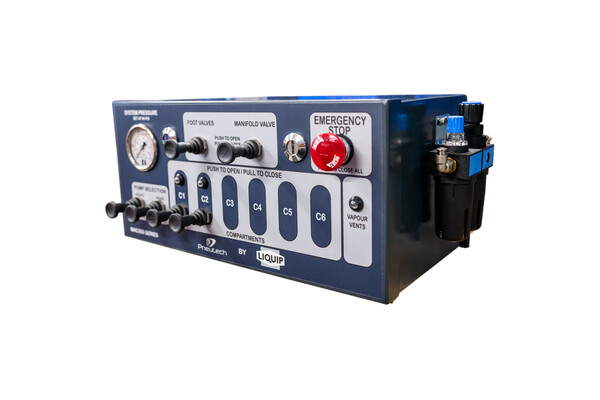

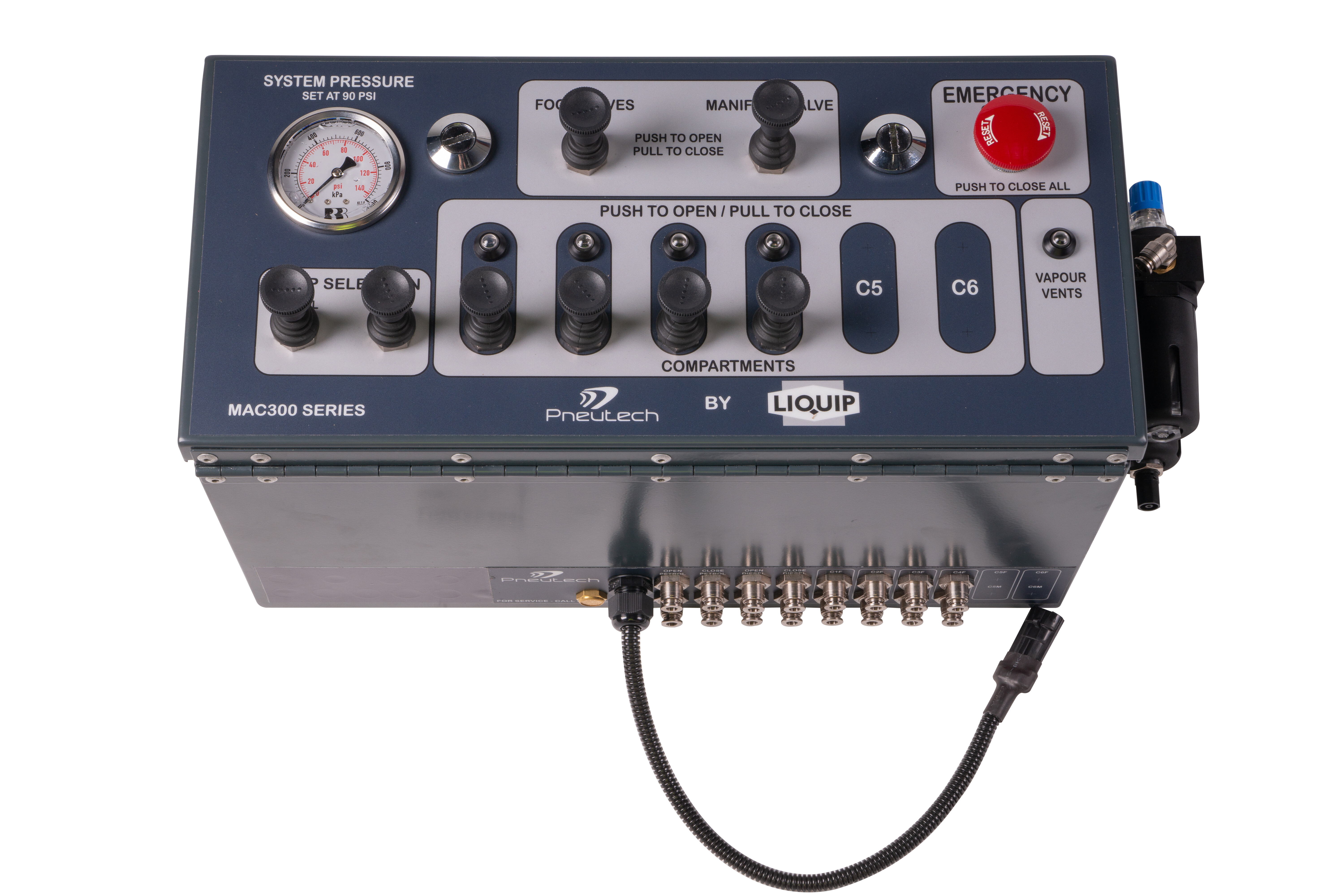

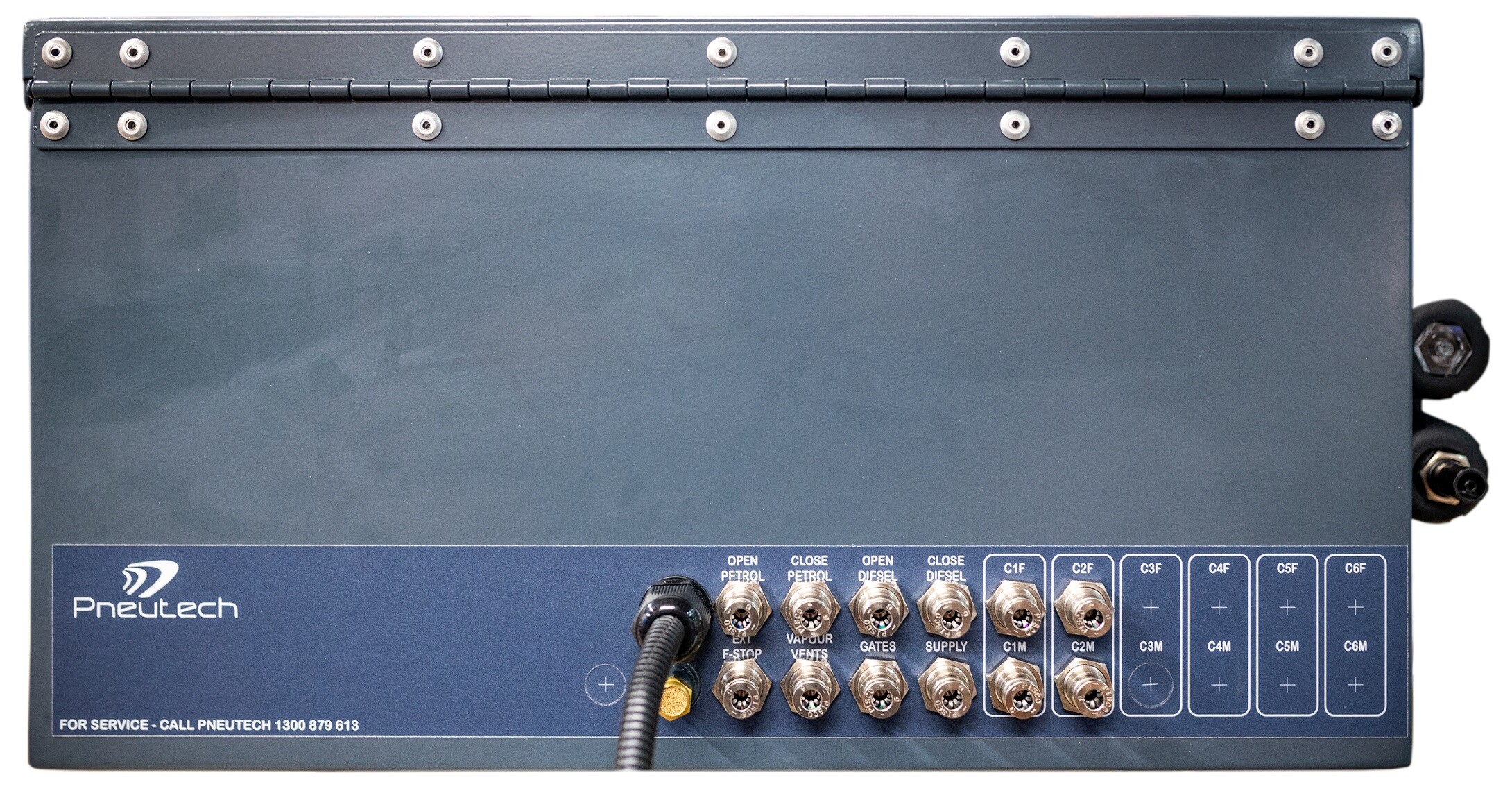

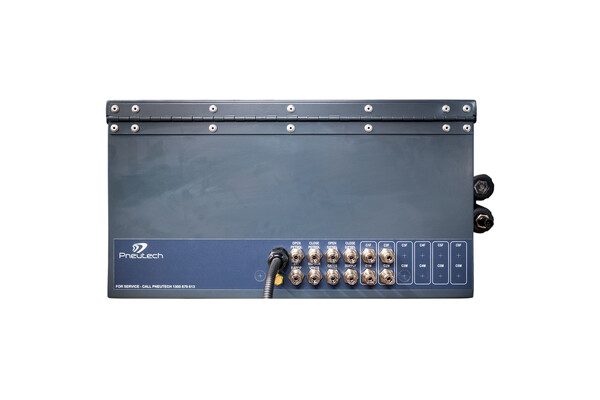

Manifold Air Control Boxes (pneumatic control)



The MAC300 series of tanker manifold pneumatic control systems are available for 2 to 6 compartment systems and are incredibly simple to use.

The MAC300 series are lightweight air operated control systems that allow users to easily operate manifolds and valves. They also allow for simple and effective loading and unloading of compartment contents in either full or split delivery applications.

Liquip's pneumatic control boxes can also be used with Liquip's market leading Swift Delivery System (Swift-Mx series) refer to Metering and Gauging section.

Features & Benefits
  • Manifold and air control.
  • Stop manifold 'shandies'
  • Simple installation - one box only, not two.
  • Emergency stop integrated with truck system.
  • Footvalve control with shuttle valves for footvalve built into the control box.
  • 'Vapour vent open' pressure indicator.
  • Overfill pressure switch with gold contacts.
  • Colour coded pneumatics.
  • Brake and Gate inputs supported.
  • Powder-coated aluminium enclosure.
  • Brake release signal input.

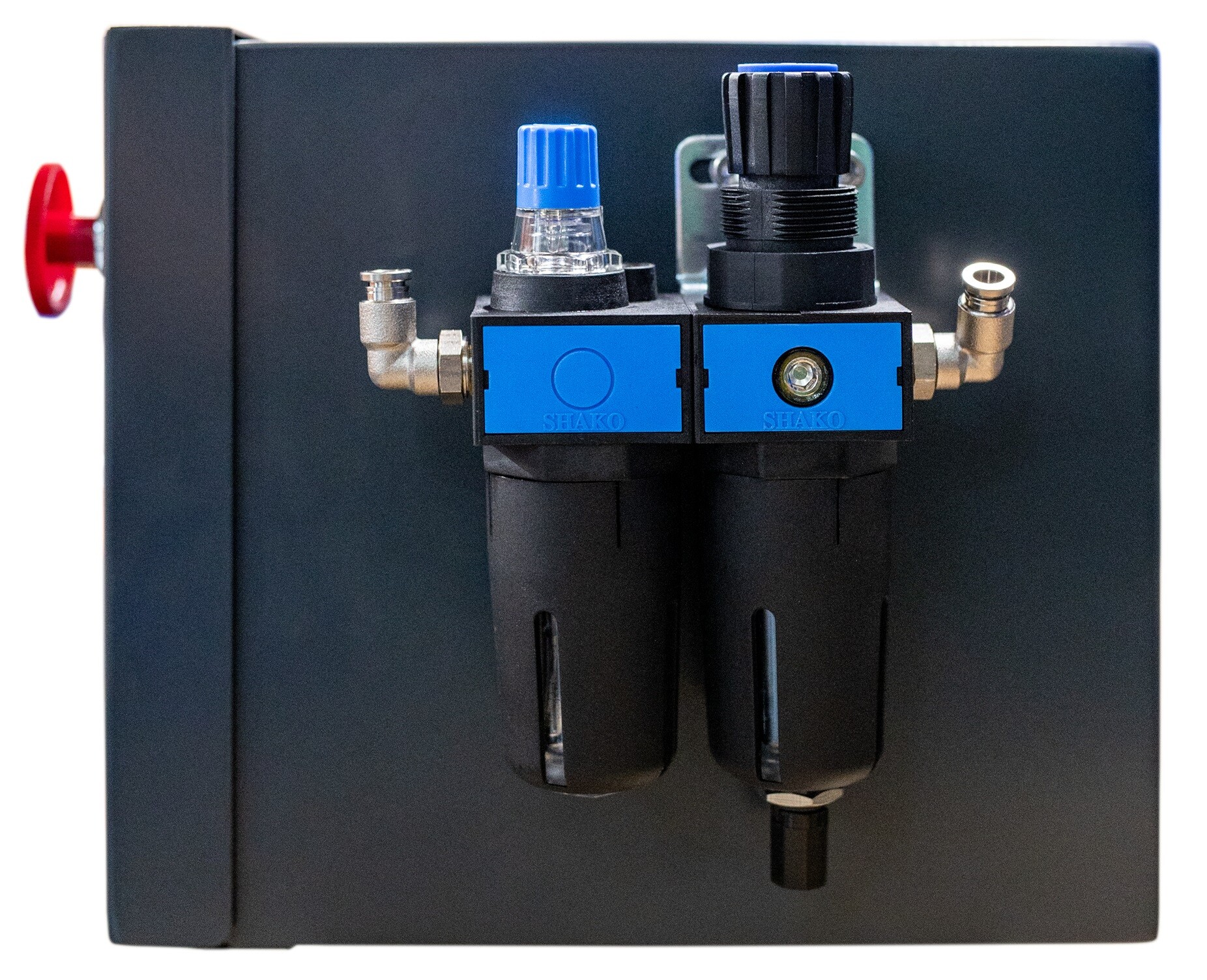

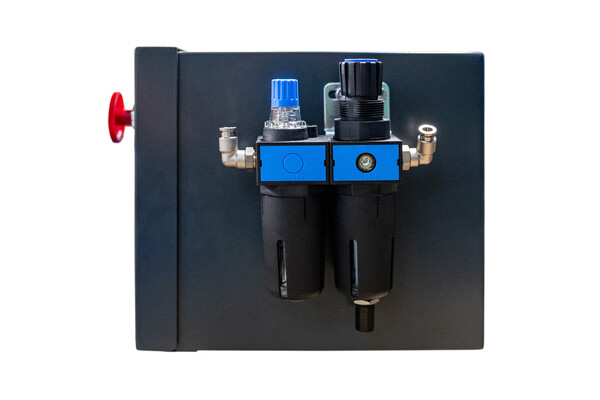

  • Air regulator/water separator and lubricator fitted to enclosure.
  • Supported by pneumatic experts.
  • Lightweight and small physical footprint.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Technical Data
    Air tube connection: 6mm push-fit.
    Lubrication oil: ISOVG32 or equivalent.

    Dismantle
    Refer to Liquip before attempting any repairs or modifications. Enclosure opens by turning two front locks with a screwdriver.

    Adjustment
    System pressure is to be maintained at 6 bar (600kPa). Adjustment is via turning knob on top of regulator.

    Mounting
    Enclosure is mounted from the rear using M8 bolts (refer to drawings overleaf). Seal off any holes not used to prevent dust & moisture ingress. For full installation instructions refer to installation manual.

    Ordering Information

    Number of compartments

    Dual product dispensing

    Single product dispensing

    Dog trailer (single product transfer)*

    Dog trailer (dual product transfer)*

    SWIFT (Pumped)

    SWIFT (Non-Pumped)
    2 MAC302 MAC302SP MAC302DOG MAC302DUAL SWIFT-M2 SWIFT-MD2
    3 MAC303 MAC303SP MAC303DOG MAC303DUAL SWIFT-M3 SWIFT-MD3
    4 MAC304 MAC304SP MAC304DOG MAC304DUAL SWIFT-M4 SWIFT-MD4
    5 MAC305 MAC305SP MAC305DOG MAC305DUAL SWIFT-M5 SWIFT-MD5
    6 MAC306 MAC306SP  -  - SWIFT-M6 SWIFT-MD6





















    * With added control for pneumatic butterfly valve on transfer line (butterfly valve not supplied with MAC box).

    Associated Equipment

    DM104 Series: Liquip DM104 series manifold valves.

    VB100U: Vacuum breaker.

    BF4-5: End blanking plate (to suit VB100U).

    BF4-7: End blanking plate (standard).

    BF4-SG-25Z: 4" TTMA Sight glass 25mm thick.

    4248: 4” TTMA Gasket (Klinger).

    0657V: 4” TTMA Gasket (Viton A).

    DM103-11: Spacer Aluminium (solid) 40mm.

    GC300Z: Vapour gate assembly c/w Air Interlock Valve & components (Standard Length  - LH/RH).

    GC500Z: Vapour Gate Assembly (left and right hand sides) with 5/2 Air Interlock Valve.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    MAC300 SERIES
    MAC302 MANIFOLD AIR CONTROL 2 COMP - PETROL/ DIST PUMPING
    MAC302SP MANIFOLD AIR CONTROL 2 COMP SINGLE PUMP
    MAC303SP MANIFOLD AIR CONTROL 3 COMP SINGLE PUMP
    MAC304 MANIFOLD AIR CONTROL 4 COMP PETROL/DIST PUMPING
    MAC304DOG MANIFOLD AIR CONTROL 4 COMP DIESEL ONLY ON TRANSFER - DOG TRAILER
    MAC304DUAL MANIFOLD AIR CONTROL 4 COMP DUAL PRODUCT TRANSFER FROM DOG TRAILER
    MAC304SP MANIFOLD AIR CONTROL 4 COMP SINGLE PUMP
    MAC305 MANIFOLD AIR CONTROL 5 COMP PETROL/DIST PUMPING
    MAC305DOG MANIFOLD AIR CONTROL 5 COMP DIESEL ONLY ON TRANSFER - DOG TRAILER
    MAC305DUAL MANIFOLD AIR CONTROL 5 COMP DUAL PRODUCT TRANSFER FROM DOG TRAILER
    MAC305SP MANIFOLD AIR CONTROL 5 COMP SINGLE PUMP
    MAC306 MANIFOLD AIR CONTROL 6 COMP PETROL/DIST PUMPING
    MAC306SP MANIFOLD AIR CONTROL 6 COMP SINGLE PUMP
    SWIFT DELIVERY SYSTEM
    SWIFT-M2 PNEUMATIC MANIFOLD CONTROL UNIT FOR SWIFT™ - 2 COMPARTMENT
    SWIFT-M3 PNEUMATIC MANIFOLD CONTROL UNIT FOR SWIFT™ - 3 COMPARTMENT
    SWIFT-M4 PNEUMATIC MANIFOLD CONTROL UNIT FOR SWIFT™ - 3 COMPARTMENT
    SWIFT-M5 PNEUMATIC MANIFOLD CONTROL UNIT FOR SWIFT™ - 4 COMPARTMENT
    SWIFT-M6 PNEUMATIC MANIFOLD CONTROL UNIT FOR SWIFT™ - 6 COMPARTMENT
    SWIFT-MD2 PNEUMATIC MANIFOLD CONTROL UNIT FOR [NON-PUMPED] SWIFT™ - 2 COMPARTMENT
    SWIFT-MD3 PNEUMATIC MANIFOLD CONTROL UNIT FOR [NON-PUMPED] SWIFT™ - 3 COMPARTMENT
    SWIFT-MD4 PNEUMATIC MANIFOLD CONTROL UNIT FOR [NON-PUMPED] SWIFT™ - 4 COMPARTMENT
    SWIFT-MD5 PNEUMATIC MANIFOLD CONTROL UNIT FOR [NON-PUMPED] SWIFT™ - 5 COMPARTMENT
    SWIFT-MD6 PNEUMATIC MANIFOLD CONTROL UNIT FOR [NON-PUMPED] SWIFT™ - 6 COMPARTMENT
