Tank Flanges

Liquip offers a range of tank flanges to suit the SLV5 Series of Internal Valves.

Tank flanges are welded into the floor of a tanker compartment to fix the SLV5 series internal valves in place.

Ordering Information

FLANGES

SLV5-13A: Aluminium SLV5 Tank Flange c/w metric studs & nuts.

SLV5-13M: Mild Steel SLV5 Tank Flange c/w metric studs & nuts.

GASKETS

0272: 3mm NBR Cork Gasket - SLV5 Tank Flange.

0272V: 3mm Viton A Gasket - SLV5 Tank Flange.

7616V: 1.6mm Viton A Gasket - SLV5 Tank Flange.

7591: Gortex Gasket - SLV5 Tank Flange.

7515: 1.5mm Klinger Gasket - SLV5 Tank Flange.

Associated Equipment

SLV5-ARO: Air Operated Internal Valve with Bonded Viton A seal.

SLV5-AROZ: SLV5:ARO comes with NBR Cork Gaskets (tank and pipe flange).

SLV5-AROVZ: SLV5:ARO comes with Viton A Gaskets (tank [3mm] and pipe [3mm] flange).

SLV5-AROTVZ:SLV5:ARO comes with 1.6mm Viton A Gaskets (tank [1.6mm] and pipe [3mm] flange).

SLV5-AROC:Air Operated Internal Valve with Bonded FFKM seal - Chemical.

SLV5CO: Cable Operated Internal Valve with Bonded Viton A seal.

SLV5M: Cable Operated Internal Valve with Bonded Viton A seal (top operated only).

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist - handy function for account holders

Send you selection of products to a friend via a convenient email link

Image	Item	Description
FLANGES

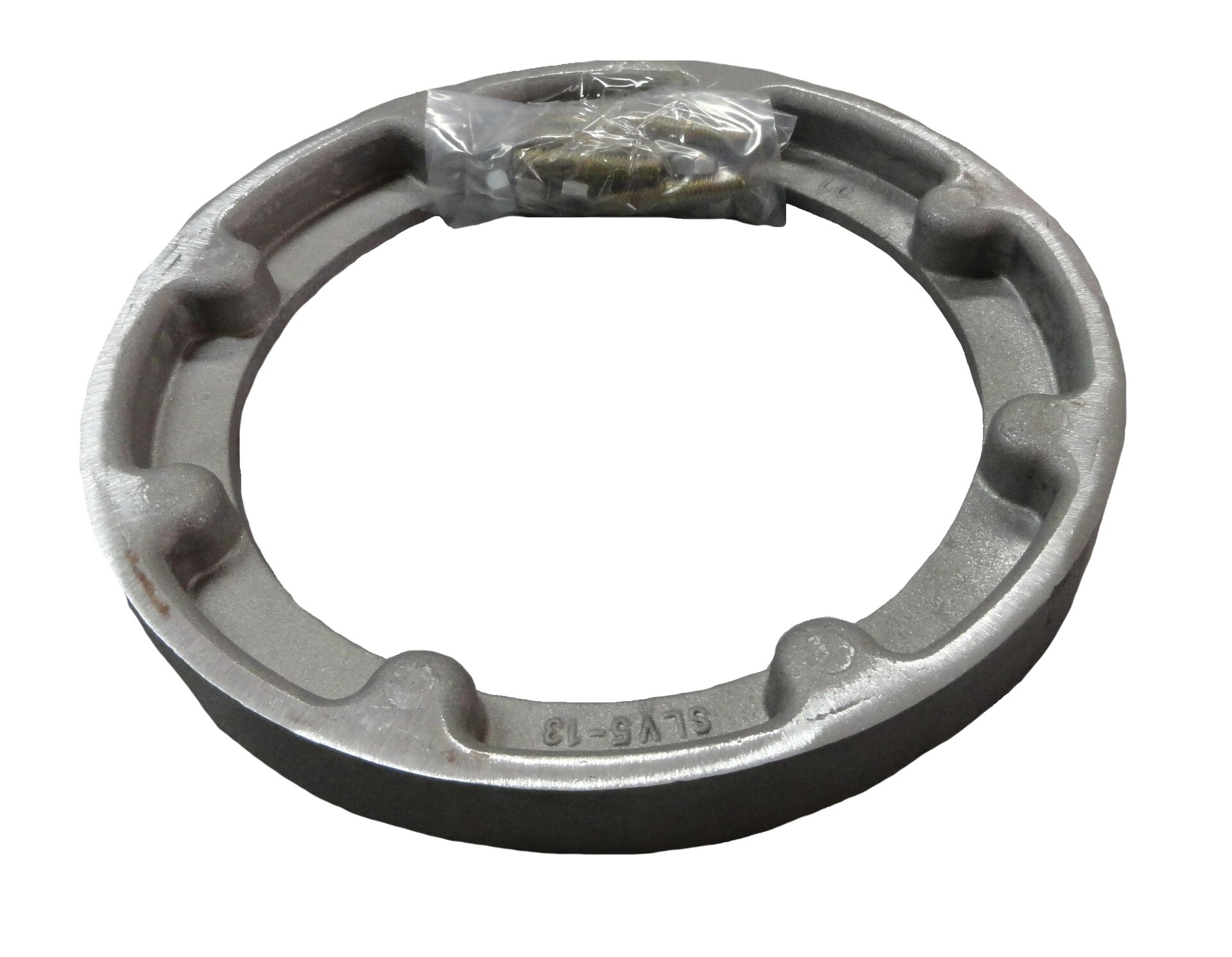

	SLV5-13A	Aluminium SLV5 Tank Flange c/w metric studs & nuts.

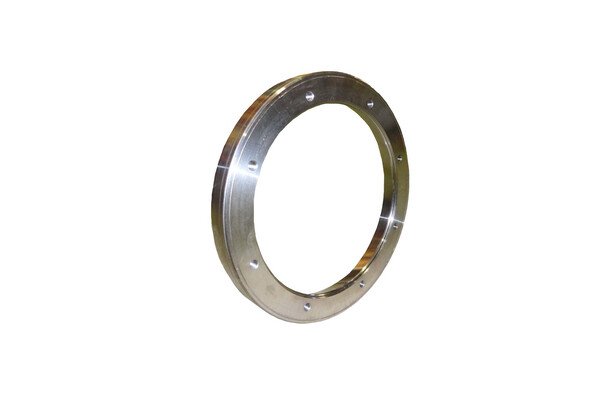

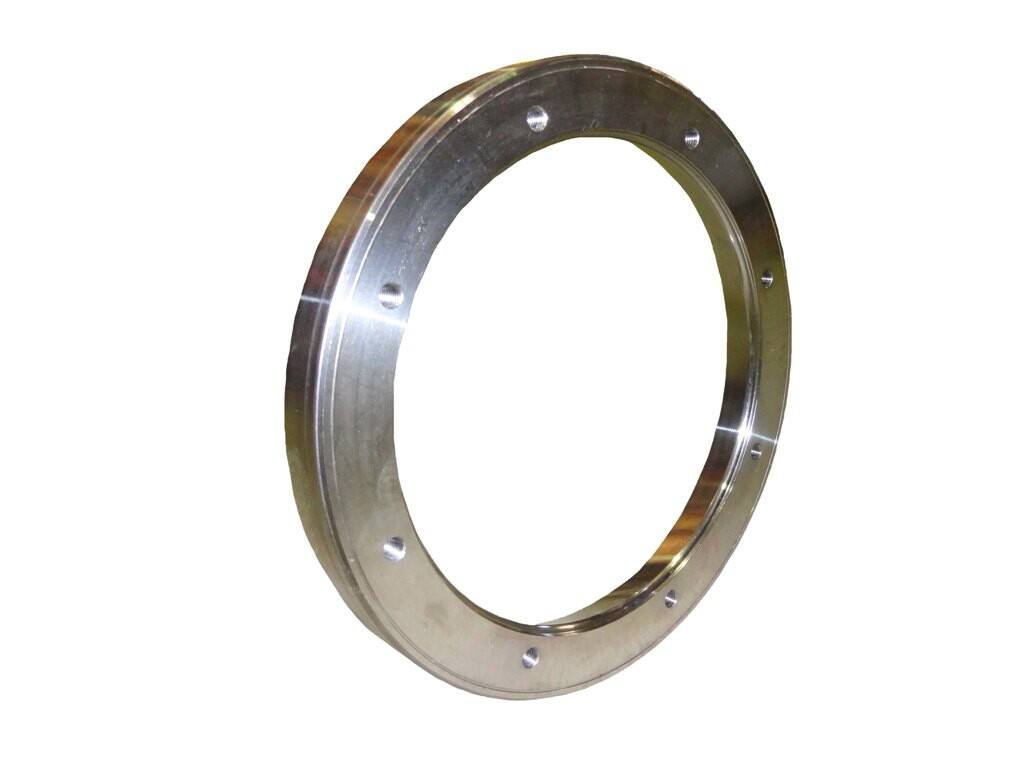

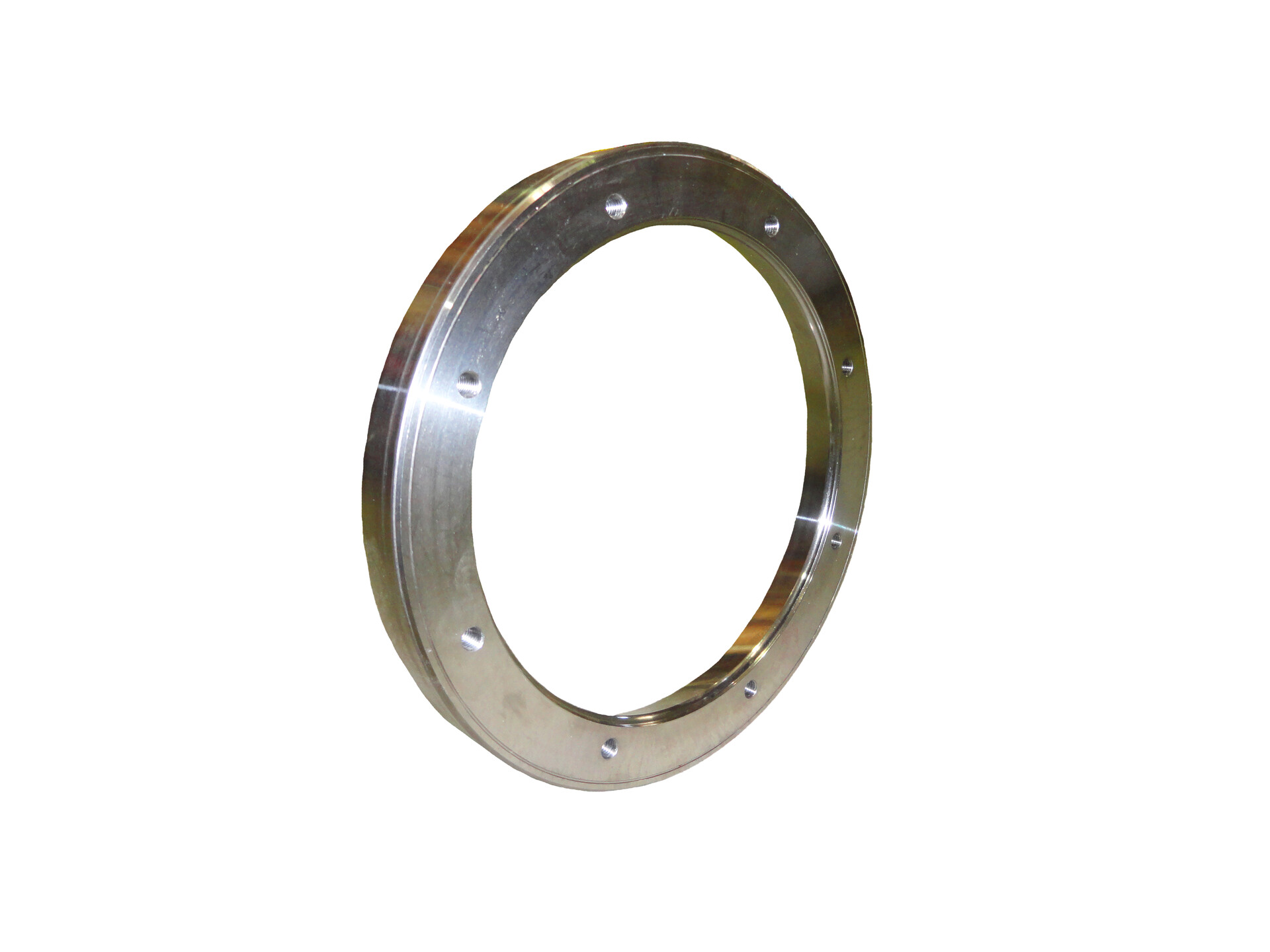

	SLV5-13M	Mild Steel SLV5 Tank Flange c/w metric studs & nuts.
GASKETS

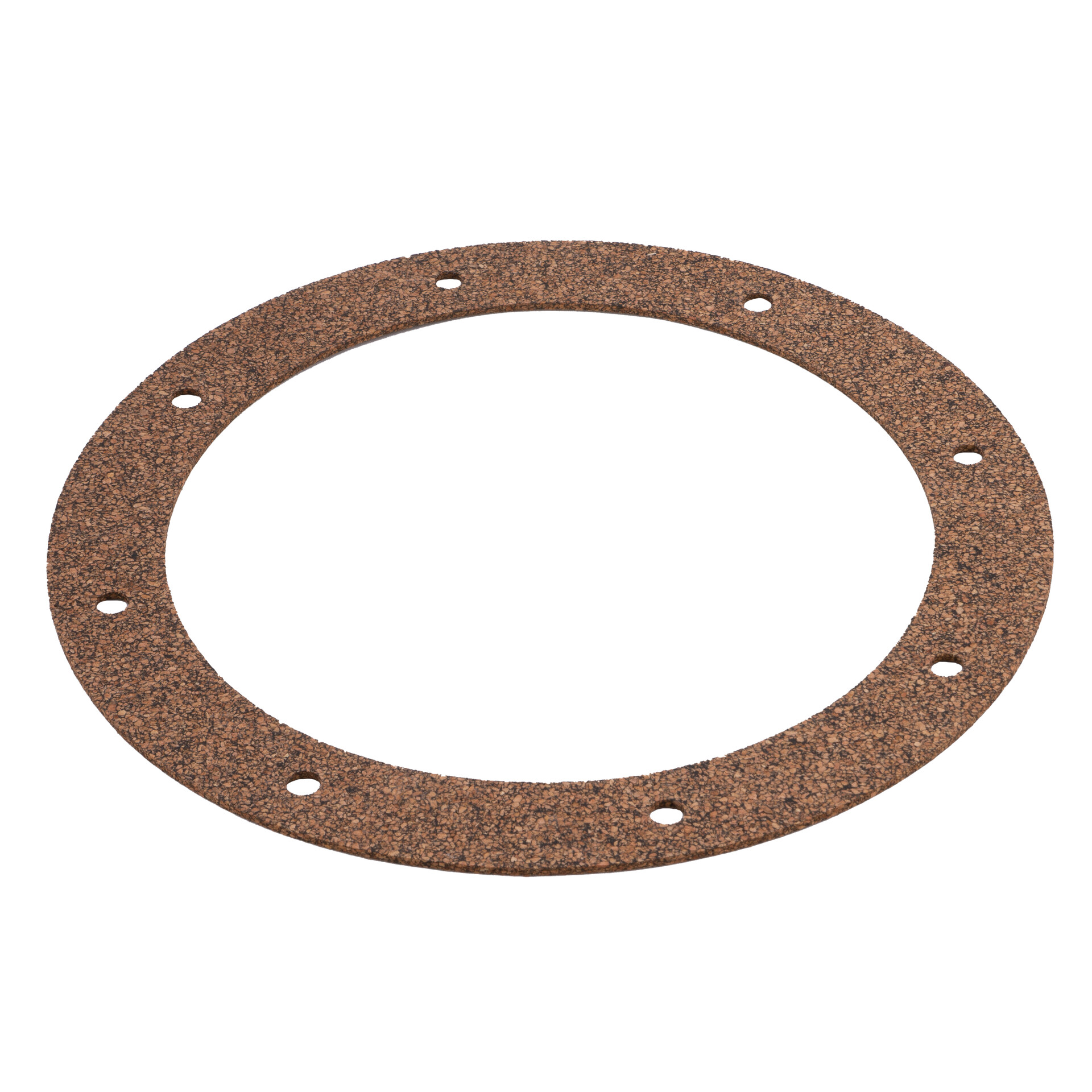

	0272	3mm NBR Cork Gasket - SLV5 Tank Flange.

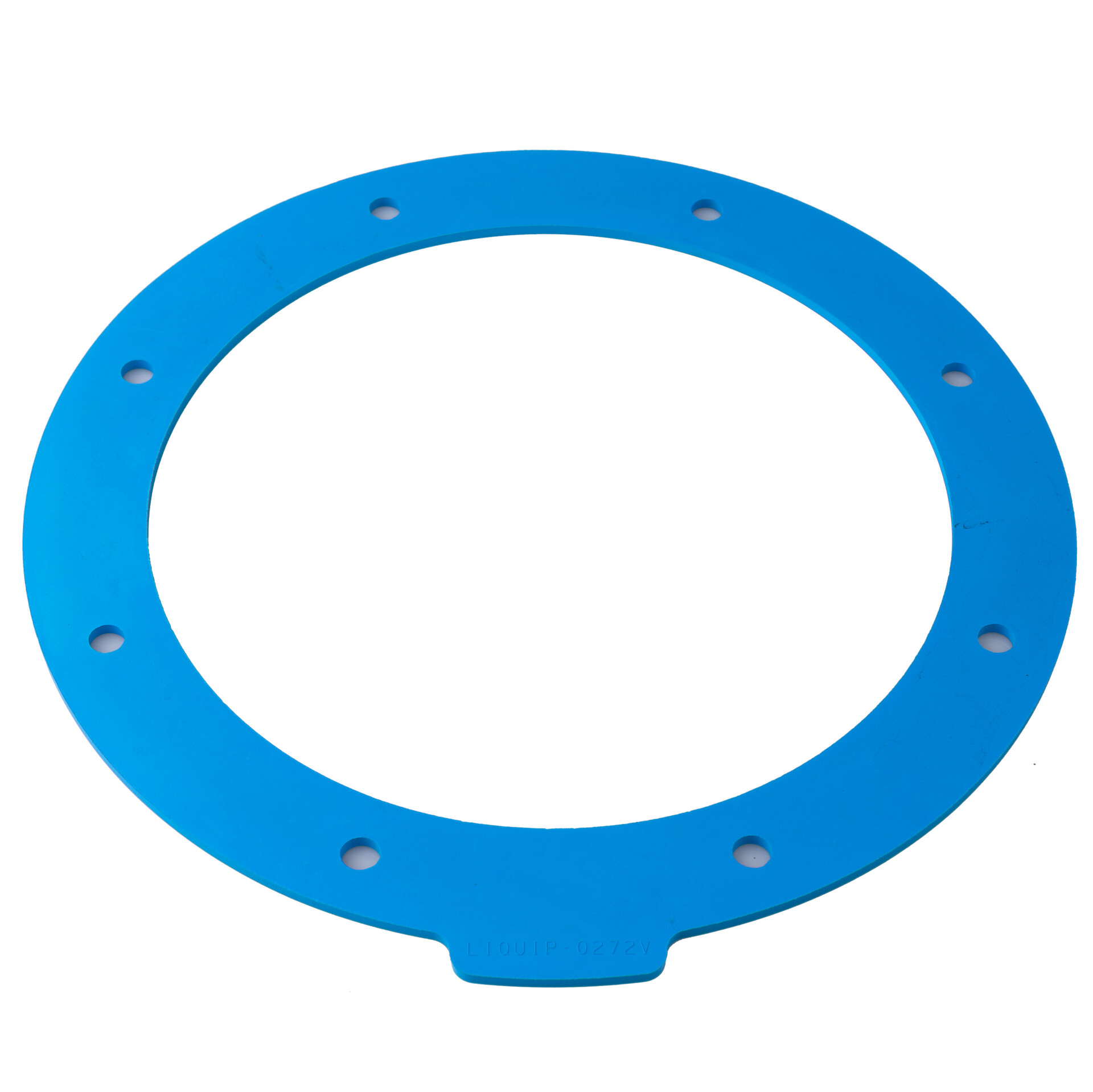

	0272V	3mm Viton A Gasket - SLV5 Tank Flange.
	7515	1.5mm Klinger Gasket - SLV5 Tank Flange.

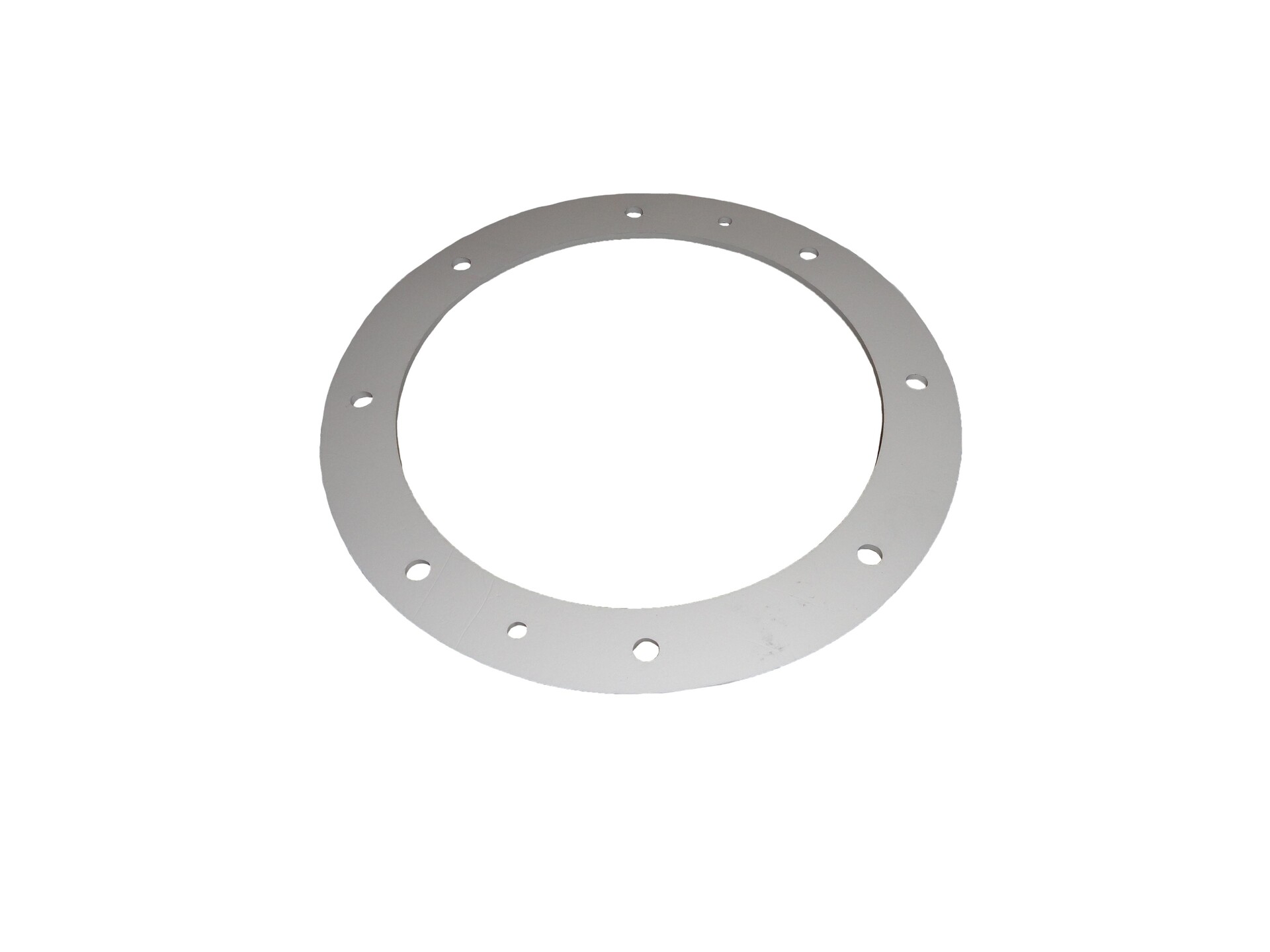

	7591	Gortex Gasket - SLV5 Tank Flange.

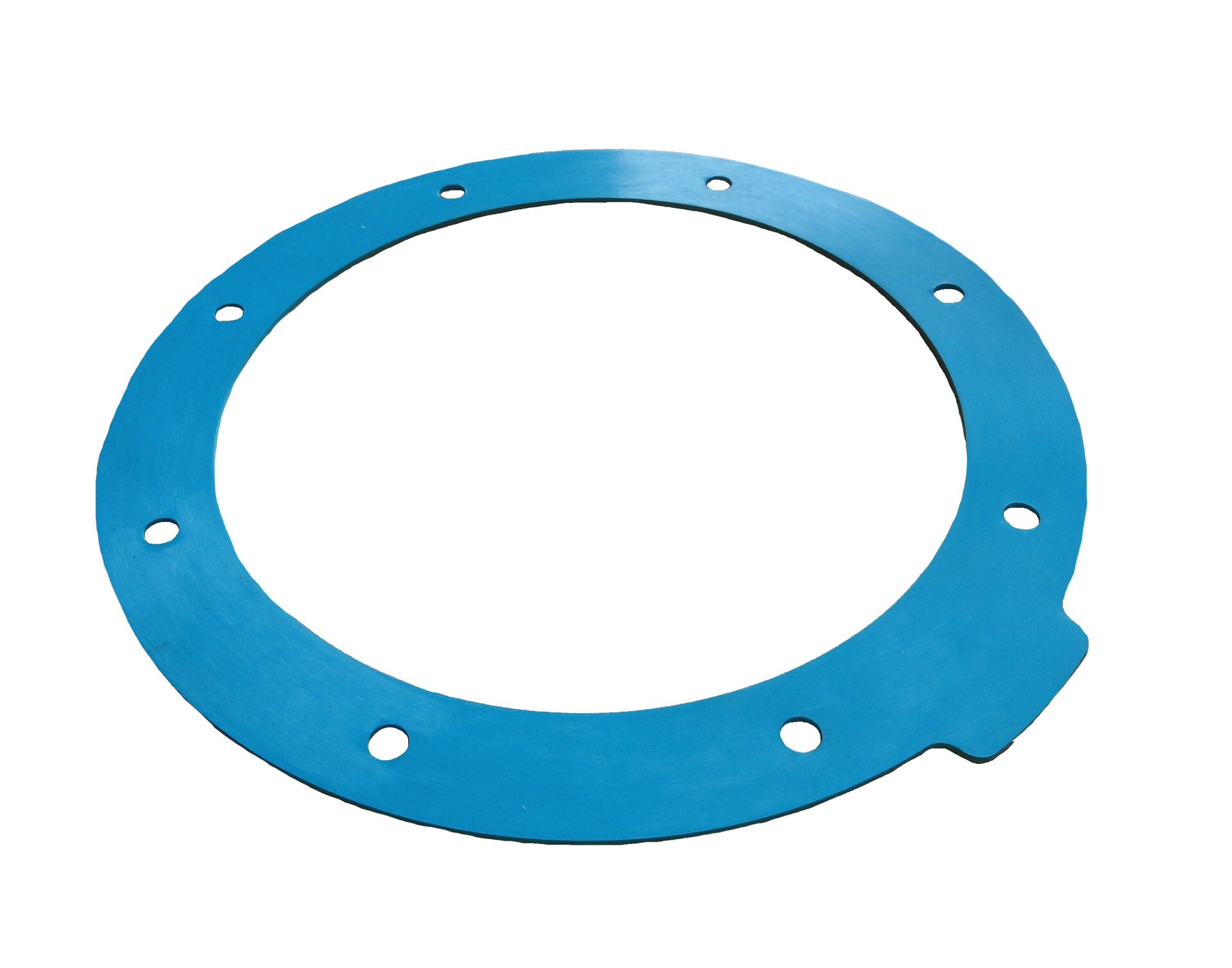

	7616V	1.6mm Viton A Gasket - SLV5 Tank Flange.
