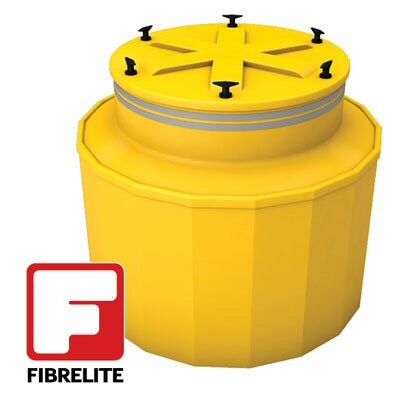

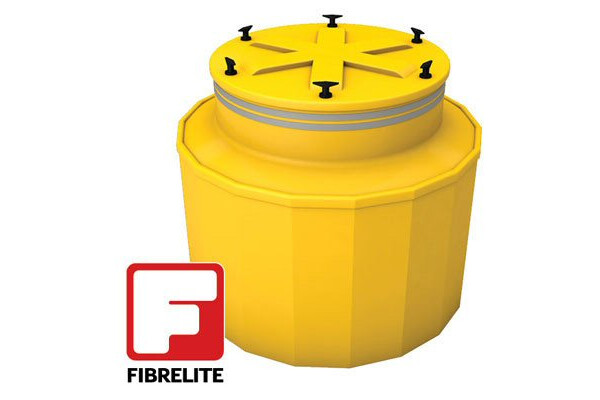

Fibrelite Tank Sumps



OPW Fibrelite tank sumps function as a liquid-tight isolation container providing secondary containment for tank fittings valves, pumps and Flexworks or Fiberglass pipe fittings.

They also provide surface access to the tank itself, as well as a clean, dry environment for future service and maintenance. The height - adjustable risers to accommodate different
tank bury depths.

Features & Benefits
  • Watertight – structure will not deform under water pressure
  • Tank Sump bury depths 40" to 60". For depths greater than 60", see extensions below.
  • Vacuum testable – during and after installation
  • Available for both new and retrofit applications

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Ordering Information
    Part #

    Dia. (in)

    Overall Height (in)

    Base

    Reducer Opening (in)

    Cover (in)

    Weight (lbs)
    S8SB-390WT-KIT

    45

    39

    Solid

    33

    33

    138
    S8SBD-390WT-KIT

    45

    48

    Solid

    33

    33

    146
    S8CR-390WT-KIT

    45

    48

    Collar Ring

    33

    33

    116
    S8CRD-390WT-KIT

    45

    63

    Collar Ring

    33

    33

    93
    S14CR-390WT-KIT

    52

    48

    Collar Ring

    33

    33

    138
    S15CR-3100WT-KIT

    57

    51

    Collar Ring

    37

    37

    165

    Kit's include Base, Reducer and Cover.

    Resin Kit must be ordered separately.

    Ordering Specifications - Sump Base

    Part #

    Application

    Dia. (in)

    Height

    (in)

    Base

    Weight (lbs)
    S45 18" Dia. X 18" Deep FRP Solid Base Sump

    18

    18

    Solid

    33
    S8SB 45" Dia. X 24" Deep FRP Sump W/ Solid Structural Base

    45

    24

    Solid

    90
    S8SBD 45" Dia. X 33" Deep FRP Sump W/Solid  Structural Base

    45

    33

    Solid

    98
    S8CR 45" Dia. X 33" Deep FRP Sump W/ 42" Collar Ring Attachment

    45

    33

    Collar Ring

    68
    S8CRD 45" Dia. X 45" Deep FRP Sump W/ 42" Collar Ring Attachment

    45

    45

    Collar Ring

    45
    S14CR 52" Dia. X 33" Deep FRP Sump W/48" Collar Ring Attachment

    52

    33

    Collar Ring

    75
    S15CR 57" Dia. X 36" Deep FRP Sump W/54" Collar Ring Attachment

    57

    36

    Collar Ring

    100

    Tank SUMP BASE, TOP-HAT, COVER and RESIN KIT must be ordered separately.

    Ordering Specifications - Top Hat

    Part #

    Application

    Dia. (in)

    Reducer Opening (in)

    Weight (lbs)
    S42-3100-TH 42" Dia. Round Sump - 37" Dia. Reducer Opening Other FRP Sumps

    42

    37

    36
    S8-390-TH S8 Sump system includes retaining ring

    45

    33

    35
    S8-3100-TH S8 Sump system includes retaining ring

    45

    37

    37
    S14-390-TH S14 Sump system includes retaining ring

    52

    33

    40
    S14-3100-TH S14 Sump system includes retaining ring   57       33      50
    S15-3100-TH S15 Sump system includes retaining ring   57  37 52


    Ordering Specifications - Optional Extensions for Deep Bury Applications

    Part #

    Application

    Dia. (in)

    Reducer Opening (in)

    Weight (lbs)
    S8-EX12 12" Deep Yellow FRP Extension For S8 Sump

    45

    12

    18
    S14-EX12 12" Deep Yellow FRP Extension For S14 Sump

    52

    12

    21
    S15-EX12 12" Deep Yellow FRP Extension For S15 Sump

    57

    12

    23

    Dimensions - Turbine Sump Watertight Cover Lids

    Part #

    Application

    Dia. (in)

    Weight (lbs)
    WT-31 31" Dia. Watertight, Structural Spill Platform

    31

    11
    WT-33 33" Dia. Watertight, Structural Spill Platform

    33

    13
    WT-37 37" Dia. Watertight, Structural Spill Platform

    37

    17





    Ordering Secifications - Tank Sump Accessories

    Part #

    Application
    SL-1100 Urethane Sealant
    S-CS-SEALANT 2 Part Self Leveling Sealant - Used to Seal Gap Between the Top-Hat and Skirt
    S-CR-FGK Kit for Bonding Collar Ring to Tank Collar - Includes Resin, Catalyst and Glass Tape.
    RK-5000 Epoxy Resin Kit Bonding Collar Ring Sump to Fiberglass Tank Collar
    PLEX-TUBE 1 Tube Of Plexus Adhesive
    Plexis Applicator Single Barrel Manual Applicator
    WSP-WTS-OPC 6" Nitrile Observation Port Cap for WSP
    WTS-CAP-14 14" Nitrile Container Port Cap for WSP
    WS-RING-31 31" Stainless Steel Retaining Ring for Top-Hat
    WS-RING-33 33" Stainless Steel Retaining Ring for Top-Hat
    WS-RING-37 37" Stainless Steel Retaining Ring for Top-Hat
    S-TH-RISER-31 10" Deep Top-Hat Riser for All 31" Dia. Opening
    S-TH-RISER-33 10" Deep Top-Hat Riser for All 33" Dia. Opening
    S-TH-RISER-37 10" Deep Top-Hat  Riser for All 37" Dia. Opening
    Technical Information

    Catalog Page

    Installation & Maintenance Instructions

    Brochures

    Below Ground Fuel Compatibility Matrix

    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    S14CR-390WT-KIT Dia(52in), Overall Height(48in), Base(Collar Ring), Reducer Opening(33in), Cover(33in), Weight(138lbs)
    S15CR-3100WT-KIT Dia(57in), Overall Height(51in), Base(Collar Ring), Reducer Opening(37in), Cover(37in), Weight(165lbs)
    S8CR-390WT-KIT Dia(45in), Overall Height(48in), Base(Collar Ring), Reducer Opening(33in), Cover(33in), Weight(116lbs)
    S8CRD-390WT-KIT Dia(45in), Overall Height(63in), Base(Collar Ring), Reducer Opening(33in), Cover(33in), Weight(93lbs)
    S8SB-390WT-KIT Dia(45in), Overall Height(39in), Base(Solid), Reducer Opening(33in), Cover(33in), Weight(138lbs)
    S8SBD-390WT-KIT Dia(45in), Overall Height(48in), Base(Solid), Reducer Opening(33in), Cover(33in), Weight(146lbs)
    OPTIONAL EXTENSIONS FOR DEEP BURY APPLICATIONS
    S14-EX12 Application(12" Deep Yellow FRP Extension For S14 Sump), Dia(52in), Reducer Opening(12in), Weight(21lbs)
    S15-EX12 Application(12" Deep Yellow FRP Extension For S15 Sump), Dia(57in), Reducer Opening(12in), Weight(23lbs)
    S8-EX12 Application(12" Deep Yellow FRP Extension For S8 Sump), Dia(45in), Reducer Opening(12in), Weight(18lbs)
    SUMP BASE
    S14CR Application(52" Dia. X 33" Deep FRP Sump W/48" Collar Ring Attachment), Dia(52in), Height(33in), Base(Collar Ring), Weight(75lbs)
    S15CR Application(57" Dia. X 36" Deep FRP Sump W/54" Collar Ring Attachment), Dia(57in), Height(36in), Base(Collar Ring), Weight(100lbs)
    S45 Application(18" Dia. X 18" Deep FRP Solid Base Sump), Dia(18in), Height(18in), Base(Solid), Weight(33lbs)
    S8CR Application(45" Dia. X 33" Deep FRP Sump W/ 42" Collar Ring Attachment), Dia(45in), Height(33in), Base(Collar Ring), Weight(68lbs)
    S8CRD Application(45" Dia. X 45" Deep FRP Sump W/ 42" Collar Ring Attachment), Dia(45in), Height(45in), Base(Collar Ring), Weight(45lbs)
    S8SB Application(45" Dia. X 24" Deep FRP Sump W/ Solid Structural Base), Dia(45in), Height(24in), Base(Solid), Weight(90lbs)
    S8SBD Application(45" Dia. X 33" Deep FRP Sump W/Solid Structural Base), Dia(45in), Height(33in), Base(Solid), Weight(98lbs)
    TANK SUMP ACCESSORIES
    PLEX-TUBE Application(1 Tube Of Plexus Adhesive)
    Plexis Applicator Application(Single Barrel Manual Applicator)
    RK-5000 Application(Epoxy Resin Kit Bonding Collar Ring Sump to Fiberglass Tank Collar)
    S-CR-FGK Application(Kit for Bonding Collar Ring to Tank Collar - Includes Resin, Catalyst and Glass Tape.)
    S-CS-SEALANT Application(2 Part Self Leveling Sealant - Used to Seal Gap Between the Top-Hat and Skirt)
    S-TH-RISER-31 Application(10" Deep Top-Hat Riser for All 31" Dia. Opening)
    S-TH-RISER-33 Application(10" Deep Top-Hat Riser for All 33" Dia. Opening)
    S-TH-RISER-37 Application(10" Deep Top-Hat Riser for All 37" Dia. Opening)
    SL-1100 Application(Urethane Sealant)
    WS-RING-31 Application(31" Stainless Steel Retaining Ring for Top-Hat)
    WS-RING-33 Application(33" Stainless Steel Retaining Ring for Top-Hat)
    WS-RING-37 Application(37" Stainless Steel Retaining Ring for Top-Hat)
    WSP-WTS-OPC Application(6" Nitrile Observation Port Cap for WSP)
    WTS-CAP-14 Application(14" Nitrile Container Port Cap for WSP)
    TOP HAT
    S14-3100-TH Application(S14 Sump system includes retaining ring), Dia(57in), Reducer Opening(33in), Weight(50lbs)
    S14-390-TH Application(S14 Sump system includes retaining ring), Dia(52in), Reducer Opening(33in), Weight(40lbs)
    S15-3100-TH Application(S15 Sump system includes retaining ring), Dia(57in), Reducer Opening(37in), Weight(52lbs)
    S42-3100-TH Application(42" Dia. Round Sump - 37" Dia. Reducer Opening Other FRP Sumps), Dia(42in), Reducer Opening(37in), Weight(36lbs)
    S8-3100-TH Application(S8 Sump system includes retaining ring), Dia(45in), Reducer Opening(37in), Weight(37lbs)
    S8-390-TH Application(S8 Sump system includes retaining ring), Dia(45in), Reducer Opening(33in), Weight(35lbs)
    TURBINE SUMP WATERTIGHT COVER LIDS
    WT-31 Application(31" Dia. Watertight, Structural Spill Platform), Dia(31in), Weight(11lbs)
    WT-33 Application(33" Dia. Watertight, Structural Spill Platform), Dia(33in), Weight(13lbs)
    WT-37 Application(37" Dia. Watertight, Structural Spill Platform), Dia(37in), Weight(17lbs)
