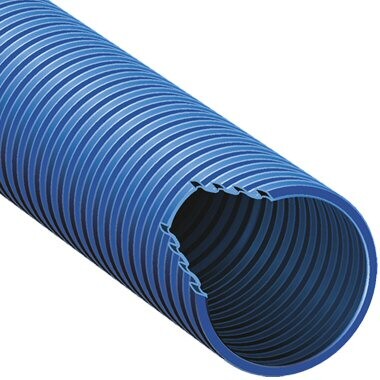

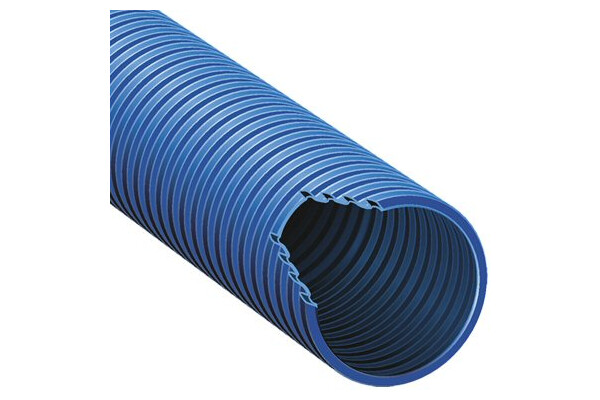

FlexWorks Dual Layer Access Pipe



A 4" diameter corrugated flexible conduit used to provide access to, and permit the future replacement of, the Flex piping, if desired. This corrugated pipe is strong enough to withstand H-20 loading requirements when properly buried and thick enough to minimize damage from shipping and jobsite handling. Access pipe can accommodate the 3/4", 1", 1-1/2", 2" and 3" FlexWorks supply pipe.

Features & Benefits

• Crush and puncture-resistant

• Semi-smooth liner facilitates ease of installation

• Saves you time and money

• No buried joints

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Ordering Information

    Ordering Specifications - FlexWorks Double Layer Access Pipe



    Item Number Application Minimum Bend Radius Packaging Dimensions Box Size Weight
    I.D. O.D.
    in. mm in. mm in. mm in. lbs. kg
    AXP40-100 4" Double Layer Access Pipe 18 457 Box 100 ft. 4 102 4.760 121.0 42x42x32 115 52
    AXP40-250 4" Double Layer Access Pipe 18 457 Box 250 ft. 4 102 4.760 121.0 60x60x32 218 99

    Access Pipe Installation Instructions Sheet Order Number: API-0001

    Technical Information
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    AXP40-100 Application(4" Double Layer Access Pipe), Minimum Bend Radius(18in / 457mm), Packaging(Box 100 ft.), Dimmensions(I.D.(4in / 102mm), O.D.(4.76in / 121mm)), Box Size(42x42x32 (in)), Weight(115lbs / 52kg)
    AXP40-250 Application(4" Double Layer Access Pipe), Minimum Bend Radius(18in / 457mm), Packaging(Box 250 ft.), Dimmensions(I.D.(4in / 102mm), O.D.(4.76in / 121mm)), Box Size(60x60x32 (in)), Weight(218lbs / 99kg)
