Dispenser Sump Accessories

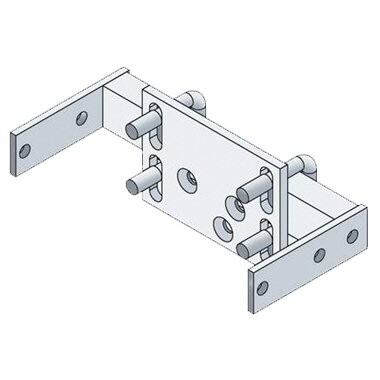

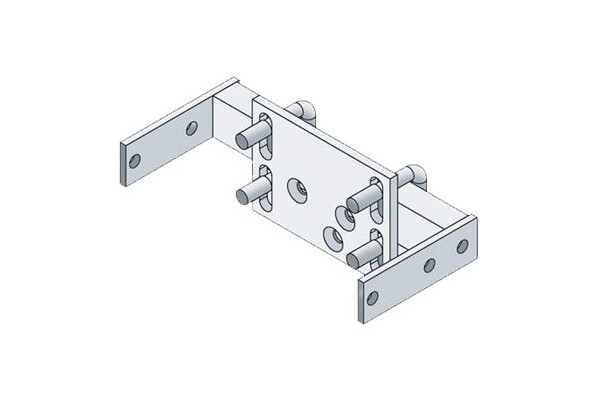

FlexWorks™ pipe Stabilizer Bar Kits provide reliable support inside dispenser sumps/pans for boss-mounted emergency shear valves. One kit is required for each emergency valve and vapor shear valve.

ADD TO ENQUIRY CART REQUEST A QUOTE

Ordering Information
Technical Information

Ordering Information

Ordering Specifications – Stabilizer Bar Kit

Item Number	Application (for Sump/Pan) DS, DSW, DSF, FDS	Weight
Item Number	Application (for Sump/Pan) DS, DSW, DSF, FDS	lbs.	kg
SBK-1000J	1036	5	2.3
SBK-1100J	1117F, 1123, 1123F, 1120	5	2.3
SBK-1200J	1229, 1242	6	2.8
SBK-1500	Ovation Product Line (DSW-1543, DSF-1543, 1543C)	7	3
SBK-1500V	Ovation Vapor Line (DSW-1543, DSF-1543, 1543C)	7	3
SBK-1600	1630, 1642	7	3
SBK-1700	DSF-1741	7	3
SBK-1800	1836, FDS-4021	7	3
SBO-0250	Ovation FDS-4319	6	2.8
MPK-10 *	Extra Mounting Plate Kit	2	1
C04400M	Stabilizer Bar Mounting Plate Only under the MPK-10*

* Stabilizer bar is installed widthwise in dispenser sump. One valve mounting plate is included. Additional MPK-10 mounting plate kit is required for additional valves.

FlexWorks Dispenser Sump Selection Guide

Gilbarco

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Gilbarco	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Commercial 625, 650, 684 Series (21" / 53 cm Frame)	15-11/16" x 21"	40 x 53	DS-1117F	DSW-1117F	DP-1117F		DSF-1117F	SBK-1100J
Salesmaker-2 Series (21" / 53 cm Frame)	15-11/16" x 21"	40 x 53	DS-1117F	DSW-1117F	DP-1117F		DSF-1117F	SBK-1100J
Highline 11B Series (21" / 53 cm Frame)	15-11/16" x 21"	40 x 53	DS-1117F	DSW-1117F			DSF-1117F	SBK-1100J
Highline 111B Series (27" / 69 cm Frame)	15-11/16" x 27"	40 x 53	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Trimline 251, 252, 261, 262 (27" / 69 cm Frame)	15-11/16" x 27"	40 x 69	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Trimline 154, 164, 251, 262 (27" / 69 cm Frame)	15-11/16" x 21"	40 x 69	DS-1117F	DSW-1117F			DSF-1117F	SBK-1100J
Commercial 650 Series (27" / 69 cm Frame)	15-11/16" x 27"	40 x 69	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Highline Salesmaker Series	15-11/16" x 21"	40 x 69	DS-1117F	DSW-1117F	DP-1117F		DSF-1117F	SBK-1100J
Highline Salesmaker Series (27" / 69 cm Frame)	15-11/16" x 27"	40 x 69	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Salesmaker-4 Series (27" / 69 cm Frame)	15-11/16" x 27"	40 x 69	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Legacy Series	15-11/16" x 27"	40 x 69	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Encore Series	23-1/2" x 40-9/16"	60 x 103	DS-1836	DSW-1836 DSW-1836CL	DP-1836	FDS-4021	DSF-1836 DSF-1836C	SBK-1800*
Advantage (36" / 91 cm Frame Models)	21-1/2" x 36"	55 x 91	DS-1630	DSW-1630	DP-1630		DSF-1630	SBK-1600
Quad or Dual
Blender X + O (36" / 91 cm)
Advantage (48" / 122 cm Frame Models)	21-1/2" x 48"	55 x 122	DS-1642	DSW-1642			DSF-1642	SBK-1600*
Blender Six-Hose
Blender Single-Hose
Blender X + O (48" / 122 cm) or X + 1 (48" / 122 cm)
MPD-1, MPD-2, MPD-3	16" x 48"	41 x 122	DS-1036					SBK-1000J
MPD Fixed Blender	16" x 48"	41 x 122	DS-1036					SBK-1000J

* For FDS-4721 Models, use Stabilizer Bar SBO-0300.

Bennett

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Bennett	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Bennett Pacific	19-1/2" x 43-1/2"	49 x 110	DS-1543A					SBK-1500
Bennett 3000 Series	20" x 30"	51 x 76	DS-1123B					SBK-1100J

PD McLaren

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
PD McLaren	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
RDR HSx (Single Product, Single Hose)	21" x 17.75"	53 x 45		DSW-1922	DSF-1922			SBK-1900
RDR HSx-D1 (Single Product, Dual Hose)	21" x 17.75"	53 x 45		DSW-1922	DSF-1922			SBK-1900
RDR HSx-D2 (Dual Product, Dual Hose)	21" x 17.75"	53 x 45		DSW-1922	DSF-1922			SBK-1900
RDR HSx-SAT (Master Unit and Satellites)	21" x 17.75"	53 x 45		DSW-1922	DSF-1922			SBK-1900
RDR HSx-X2 (Single Product, Dual Hose, One at a Time)	21" x 17.75"	53 x 45		DSW-1922	DSF-1922			SBK-1900

Gasboy

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Gasboy	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
0215A, 216A (197/8" Frame / 50.5 mm)	17-1/4" x 19-7/8"	49 x 50.5	DS-1117F	DSW-1117F	DP-1117F		DSF-1117F	SBK-1100J
52 and 53 Series	17" x 19-7/8"	44 x 50.5	DS-1117F	DSW-1117F	DP-1117F		DSF-1117F	SBK-1100J
8700, 8800, 9100, 9800 Series	17-1/4" x 25"	44 x 63.5	DS-1120					SBK-1100J
25" Frame 63.5 mm	17-1/4" x 25"	44 x 63.5
8700, 8800, 9100, 9800 Series (28-1⁄4" Frame / 72 mm)	17-1/4" x 28"	44 x 71	DS-1123	DSW-1123	DP-1123		DSF-1123F	SBK-1100J
9850A	15-11/16" x 21"	40 x 69	DS-1120	DSW-1120			DSF-1120	SBK-1100J

* Stabilizer bar is installed widthwise in dispenser sump

Dresser / Wayne

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Dresser / Wayne	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
350, 357, 358, 360, 370 Series	15" x 25-7⁄8"	30 x 66	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Vista 380 Series (387, 389)	20" x 35"	51 x 89	DS-1229	DSW-1229			DSF-1229	SBK-1200J
Vista 590 Series (590, 595)	20" x 48"	51 x 122	DS-1242	DSW-1242			DSF-1242	SBK-1200J
Vista 390 Series (395, 399)	20" x 48"	51 x 122	DS-1242	DSW-1242			DSF-1242	SBK-1200J
Vista 490 Series	20" x 48"	51 x 122	DS-1242	DSW-1242			DSF-1242	SBK-1200J
DL390, 395, 399 Series	20" x 48"	51 x 122	DS-1242	DSW-1242			DSF-1242	SBK-1200J
HS1 Satellite / 287 Series	20" x 35"	51 x 89	DS-1229	DSW-1229			DSF-1229	SBK-1200J
Ovation	19-1⁄2" x 43-1⁄2"	50 x 110	DS-1543A**	DSW-1543 DSW-1543C		FDS-4319*	DSF-1543 DSF-1543C	SBK-1500
Select	19-3⁄8" x 32-5⁄16"	49 x 82	DS-1928					SBK-1500A
Global Century	19-3⁄8" x 32-5⁄16"	49 x 82	DS-1928					SBK-1500A
Reliance	19-3⁄8" x 32-5⁄16"	49 x 82	DS-1928					SBK-1500A
HS4 / HS3 / Vista	19-3⁄8" x 32-5⁄16"	49 x 82	DS-1630	DSW-1630***	DP-1630		DSF-1630***	SBK-1600
Narrow Frame Helix (2000, 4000)	20" x 33"	51 x 84	DS-1630					SBK-1600
Wide Frame Helix (5000)	26" x 44"	51 x 112	DS-1741					SBK-1700

* For FDS-4319 Model use Stabilizer Bar SBO-0250 ** For DS-1543A Model use Stabilizer Bar SBK-1500A; for DSF/DSW-1543 Models use Stabilizer Bar SBK-1500 *** For DS-1928 Model use Stabilizer Bar SBK-1500A; for DSF/DSW-1630 Models use Stabilizer Bar SBK-1600

Tokheim

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Tokheim	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
1200, 1248, 1250 Series	17-1/4" x 25"	44 x 64	DS-1120	DSW-1120			DSF-1120	SBK-1100J
330B, 333B Series	17-1/4" x 44"	44 x 112	DS-1642	DSW-1642			DSF-1642	SBK-1600
