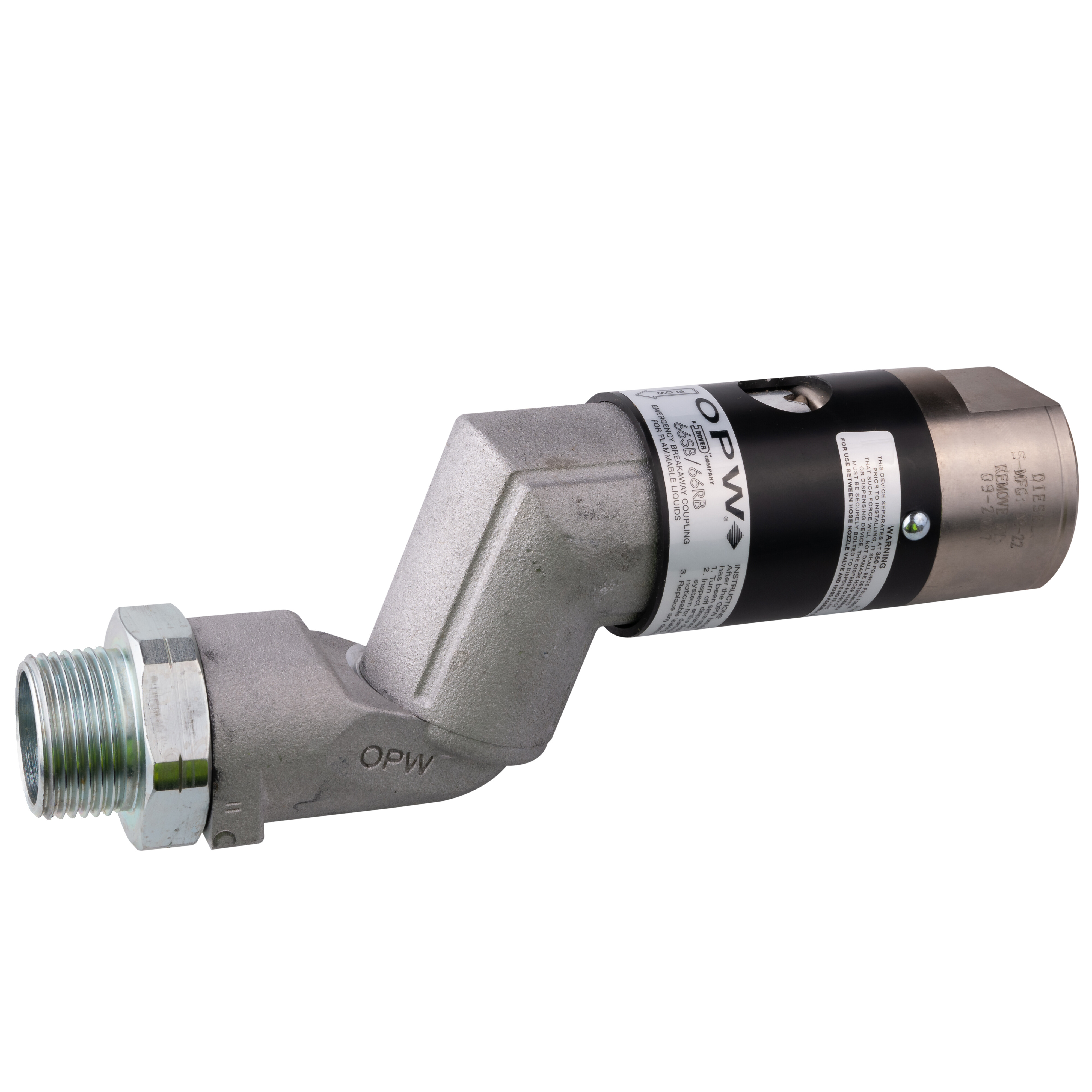

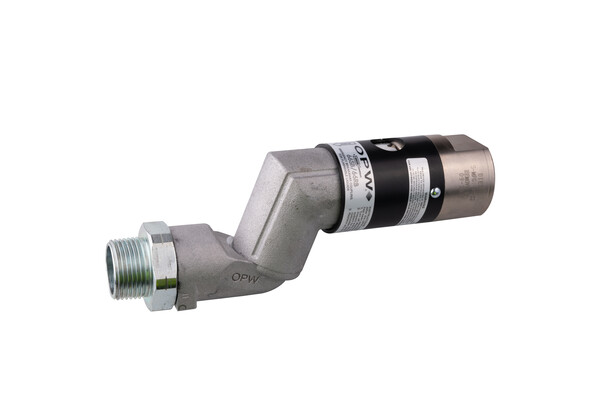

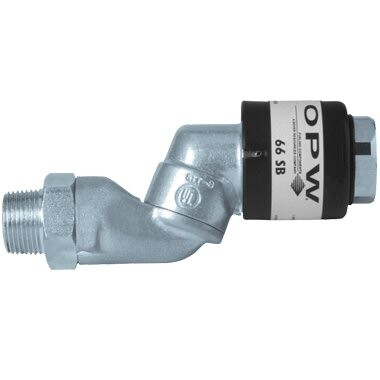

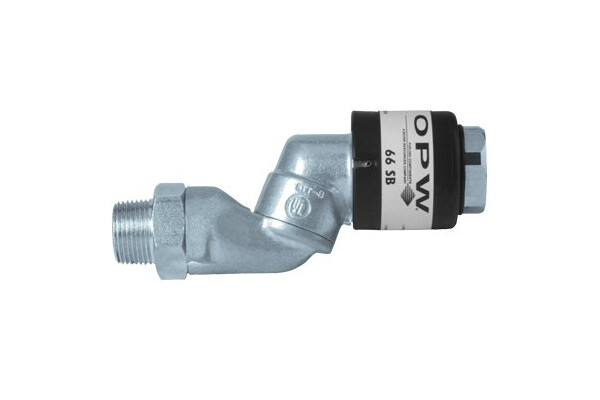

66SB Swivel Breakaway



The OPW 66SB Swivel Breakaway is intended for easy installation at the nozzle inlet. The compact, lightweight design incorporates a 360° swivel rotation at both the male end and middle joint, with a simple and easily-reconnectable breakaway on the opposite end.

Features & Benefits
  • UL and ULC listed for use in gasoline, diesel and up to 10% ethanol blends. See specific listings.
  • Pull Force - the 66SB will break away with a pull force of no more than 350 lbs.
  • Easily Reconnected at Waist Height - after relieving line pressure, simply push coupling halves together until latched. Reconnection force is approximately 15 lbs.
  • Protected Coupling and Poppet - the breakaway's poppet and sealing surface are protected from impact during separation by a plastic sleeve.
  • Reduces Connections - the single-unit design replaces the standard swivel, breakaway and whip hose, eliminating possible leak points.
  • Double O-Ring Seal - both swivel joints are protected by a double O-Ring design.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Design working pressure
    50 psi (3.45 bar) maximum pressure.

    Listings & Certifications
    UL

    Materials

    Body: Aluminium

    Sleeve: Nylon, HDPE

    Seals: Viton®

    Spring: Stainless steel

    Poppet: Aluminium

    Packed: 20 per case

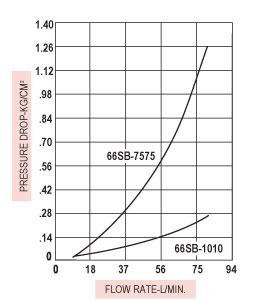

    Performance

    Ordering Information
    Item Number Description
    66SB-1010L BREAKAWAY SWIVEL 1" X 1" BSPT
    66SB-1010-BSPP BREAKAWAY SWIVEL 1" X 1" BSPP
    66SB-1010 BREAKAWAY SWIVEL 1" X 1" NPT
    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    66SB-1010 BREAKAWAY SWIVEL 1" X 1" NPT
    66SB-1010-BSPP BREAKAWAY SWIVEL 1" X 1" BSPP
    66SB-1010L BREAKAWAY SWIVEL 1" X 1" BSPT
