Aviation Hose Reel Cartwheel Style - AHR250 Series



Liquip The Liquip offers a range of single wrap Cartwheel/Catherine style hose reels suitable for aviation fuels.

Liquips AHR250 Series reels are proven in commercial, military and mobile fueling applications.

Cartwheel style hose reels are a convenient method of storing a quantity of fuel delivery hose. When the fill point is located at varying locations the required length of hose can be dispensed and rewound by hydraulic or manual means.

Liquip can also offer custom builds the incorporates a hose guide or “chute” and nozzle stowage, to which interlocks are usually added to help prevent drive away accidents and product spills.

Features & Benefits
  • Single wrap heavy duty design for ease of use and longevity.
  • Can be supplied with open spoke design. (AHR250 reel is available with side infill panels as standard).
  • Dedicated inlet and rewind sides provides robust construction in the harshest environments.
  • Hose inlet is 3” TTMA for strong connection.
  • A range of diameters and widths available to accommodate various hose diameters and lengths, with or without hose beads / protection rings.
  • Can be manually or hydraulically operated - hydraulic ready (no motor as standard).
  • Aluminium manifold and nickle plated gooseneck for aviation fuel.
  • Frame not supplied to allow for customer specific mounting applications.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information
    AHR250 Cartwheel Hosereel Series
    Max allowable working pressure 2,100 kPa
    Periodic Service Annually remove and repack bearing on the inlet side of the reel.
    Mounting

    Support frame not supplied (see Datasheet for mounting dimensions).

    Inlet flange is to suit 75mm (3”) TTMA – 8 off 3/8” BSW x 25mm deep blind threads on a 124mm PCD.

    Inlet can be positioned on either side of the Hose Reel.
    Operation

    Dispense: Un-hook nozzle and dispense hose to the required location.

    Rewind: a hydraulic motor (supplied separately) or manual mechanism is used to rewind the reel such as rotating the outer rim.

    The hose nozzle storage (supplied separately) can be fitted with interlocks to help prevent drive away accidents and product spills.
    Rewind Options Manual or Hydraulic.
    Materials

    -Aluminium cartwheels, drum and manifold.
    -Nickel Plated Steel Gooseneck.
    -Viton Seals.
    Variants AHR250A Hose Reels: suit hose OD from 86mm to 110mm.
    AHR250B Hose Reels: suit hose OD from 56mm to 85mm.
    AHR250C Hose Reels: suit hose OD from 25mm to 55mm.
    Dismantle None Required
    Weight 37kg
    Cartwheel Lining Recommended for hoses with hose beads.
    Hose Sizes 1”- 2” nominal bore
    Contact Liquip for hosereels supplied complete with hose

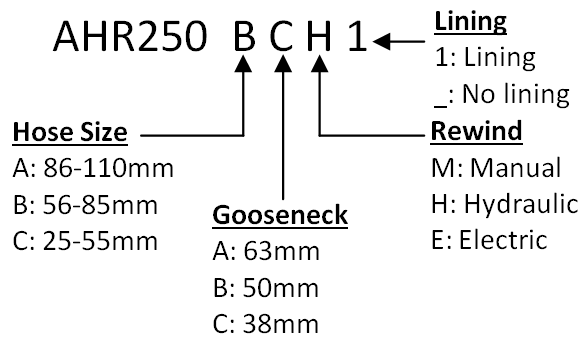

    Ordering Information

    e: Electric available as an assembly

    AHR250A: Hosereel suit hose sizes from 86mm to 110mm OD and will accept 2" (50mm) ID hoses with hose beads.

    AHR250B: Hosereel suits hoses sizes from diameter 56 mm to 85mm OD and will accept 1 1/4" (32mm) ID and 1 1/2" (38mm) ID hoses with hose beads, or 2" (50mm) ID hoses without hose beads.

    AHR250C: Hosereel suits hose sizes from diameter 25mm to 55mm OD and will accept 1 1/4" (32mm) ID and 1 1/2" (38mm) ID hoses without hose beads.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    AHR250ABE Hose Size(86-110mm), Gooseneck(50mm), Rewind(Electric), No Lining
    AHR250ABEL Hose Size(86-110mm), Gooseneck(50mm), Rewind(Electric), Lining
    AHR250ABH Hose Size(86-110mm), Gooseneck(50mm), Rewind(Hydraulic), No Lining
    AHR250ABHL Hose Size(86-110mm), Gooseneck(50mm), Rewind(Hydraulic), Lining
    AHR250ABM Hose Size(86-110mm), Gooseneck(50mm), Rewind(Manual), No Lining
    AHR250ABML Hose Size(86-110mm), Gooseneck(50mm), Rewind(Manual), Lining
    AHR250ACE Hose Size(86-110mm), Gooseneck(38mm), Rewind(Electric), No Lining
    AHR250ACEL Hose Size(86-110mm), Gooseneck(38mm), Rewind(Electric), Lining
    AHR250ACH Hose Size(86-110mm), Gooseneck(38mm), Rewind(Hydraulic), No Lining
    AHR250ACHL Hose Size(86-110mm), Gooseneck(38mm), Rewind(Hydraulic), Lining
    AHR250ACM Hose Size(86-110mm), Gooseneck(38mm), Rewind(Manual), No Lining
    AHR250ACML Hose Size(86-110mm), Gooseneck(38mm), Rewind(Manual), Lining
    AHR250BBE Hose Size(56-85mm), Gooseneck(50mm), Rewind(Electric), No Lining
    AHR250BBEL Hose Size(56-85mm), Gooseneck(50mm), Rewind(Electric), Lining
    AHR250BBH Hose Size(56-85mm), Gooseneck(50mm), Rewind(Hydraulic), No Lining
    AHR250BBHL Hose Size(56-85mm), Gooseneck(50mm), Rewind(Hydraulic), Lining
    AHR250BBM Hose Size(56-85mm), Gooseneck(50mm), Rewind(Manual), No Lining
    AHR250BBML Hose Size(56-85mm), Gooseneck(50mm), Rewind(Manual), Lining
    AHR250BCE Hose Size(56-85mm), Gooseneck(38mm), Rewind(Electric), No Lining
    AHR250BCEL Hose Size(56-85mm), Gooseneck(38mm), Rewind(Electric), Lining
    AHR250BCH Hose Size(56-85mm), Gooseneck(38mm), Rewind(Hydraulic), No Lining
    AHR250BCHL Hose Size(56-85mm), Gooseneck(38mm), Rewind(Hydraulic), Lining
    AHR250BCM Hose Size(56-85mm), Gooseneck(38mm), Rewind(Manual), No Lining
    AHR250BCML Hose Size(56-85mm), Gooseneck(38mm), Rewind(Manual), Lining
    AHR250CBE Hose Size(25-55mm), Gooseneck(50mm), Rewind(Electric), No Lining
    AHR250CBEL Hose Size(25-55mm), Gooseneck(50mm), Rewind(Electric), Lining
    AHR250CBH Hose Size(25-55mm), Gooseneck(50mm), Rewind(Hydraulic), No Lining
    AHR250CBHL Hose Size(25-55mm), Gooseneck(50mm), Rewind(Hydraulic), Lining
    AHR250CBM Hose Size(25-55mm), Gooseneck(50mm), Rewind(Manual), No Lining
    AHR250CBML Hose Size(25-55mm), Gooseneck(50mm), Rewind(Manual), Lining
    AHR250CCE Hose Size(25-55mm), Gooseneck(38mm), Rewind(Electric), No Lining
    AHR250CCEL Hose Size(25-55mm), Gooseneck(38mm), Rewind(Electric), Lining
    AHR250CCH Hose Size(25-55mm), Gooseneck(38mm), Rewind(Hydraulic), No Lining
    AHR250CCHL Hose Size(25-55mm), Gooseneck(38mm), Rewind(Hydraulic), Lining
    AHR250CCM Hose Size(25-55mm), Gooseneck(38mm), Rewind(Manual), No Lining
    AHR250CCML Hose Size(25-55mm), Gooseneck(38mm), Rewind(Manual), Lining
