| Part | Hose Size ID (inches) | Hose Size ID (mm) | Hose Size OD (mm) | Working Pressure (bar) | Test Pressure (bar) | Max Vacuum (bar) | Min Reel Diametered (mm) | Coil Length Options (m) | Approx Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| 3343 | 1 | 25 | 37 | 20 | 40 | 0.5 | 200 | 30, 40, 50,60,80 | 0.8 |
| 3344 | 1 ¼ | 32 | 44 | 20 | 40 | 0.4 | 225 | 30, 40, 50,60,80 | 1.0 |
| 3345 | 1 ½ | 38 | 51 | 20 | 40 | 0.3 | 270 | 30, 40, 50,60,80 | 1.2 |
| 3346 | 2 | 50 | 66 | 20 | 40 | 0.3 | 400 | 30, 40, 50,60,80 | 1.9 |
| 3347 | 2 ½ | 63 | 79 | 20 | 40 | 0.2 | 600 | 30, 40 | 2.4 |
| 3348 | 3 | 75 | 91 | 20 | 40 | - | 600 | 40 | 2.8 |
| 3349 | 4 | 100 | 117 | 20 | 40 | - | 900 | 40 | 3.7 |

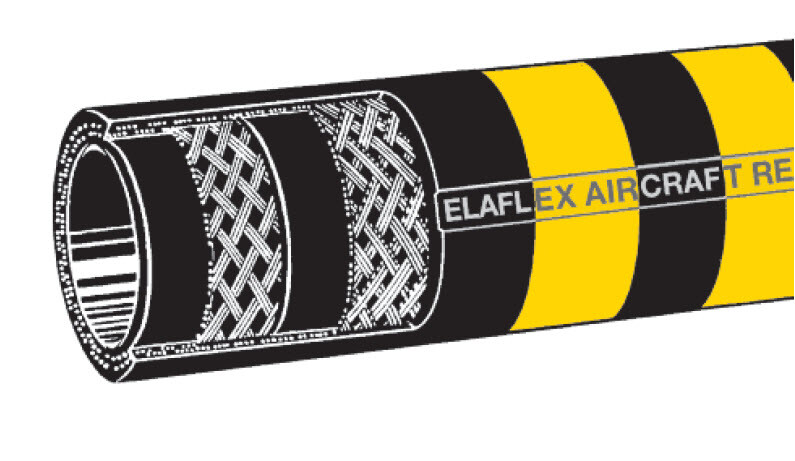

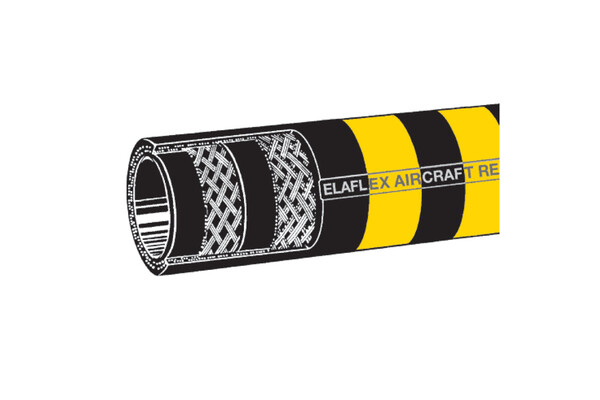

Elaflex Aviation Hose
Yellow band aircraft refuelling hoses, suitable for all aviation gasoline and jet fuels (JET-A1), anti-icings fluids and motor oils.
Specified by almost all major oil companies.
NOTE: Not for suction. Burst pressure > 80 bar / 1200psi.
the hose does not kink with a permanent pressure of at least 0.5 bar.
Note: Liquip can only ship Elaflex Parts to Australia, New Zealand and the Pacific Islands.
Features & Benefits
- Elaflex standard type "HD-C" with two textile braids.
- Light weight, flexible hose for all purposes.
- Holds various European, Australian and American approvals.
- Full coils of hose are offered or cut lengths can be provided upon request.
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
 |
3343 | Hose Size ID (1in / 25mm), Hose Size OD (37mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.5bar), Min Reel Diametered (200mm), Coil Length (30, 40, 50, 60, 80(m)), Approx Weight (0.8kg/m) | |
|
|
3344 | Hose Size ID (1 ¼in / 32mm), Hose Size OD (44mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.4bar), Min Reel Diametered (225mm), Coil Length (30, 40, 50, 60, 81(m)), Approx Weight (1kg/m) | |
|
|
3345 | Hose Size ID (1 ½in / 38mm), Hose Size OD (51mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.3bar), Min Reel Diametered (270mm), Coil Length (30, 40, 50, 60, 82(m)), Approx Weight (1.2kg/m) | |
|
|
3346 | Hose Size ID (2in / 50mm), Hose Size OD (66mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.3bar), Min Reel Diametered (400mm), Coil Length (30, 40, 50, 60, 83(m)), Approx Weight (1.9kg/m) | |
|
|
3347 | Hose Size ID (2 ½in / 63mm), Hose Size OD (79mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.2bar), Min Reel Diametered (600mm), Coil Length (30, 40(m)), Approx Weight (2.4kg/m) | |
|
|
3348 | Hose Size ID (3in / 75mm), Hose Size OD (91mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (-bar), Min Reel Diametered (600mm), Coil Length (40(m)), Approx Weight (2.8kg/m) | |
|
|
3349 | Hose Size ID (4in / 100mm), Hose Size OD (117mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (-bar), Min Reel Diametered (900mm), Coil Length (40(m)), Approx Weight (3.7kg/m) |
