AVN042 - Overwing Nozzles

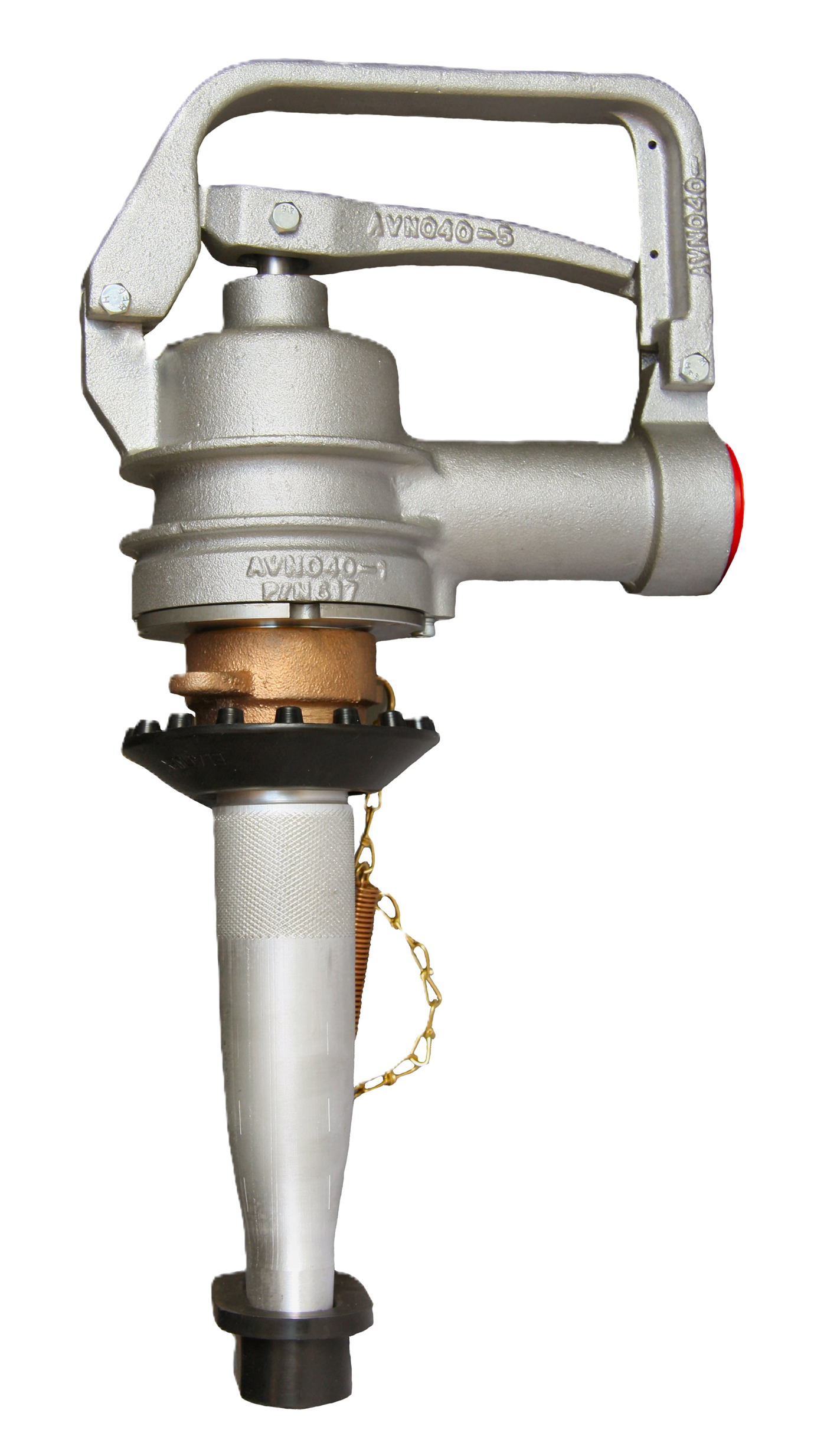

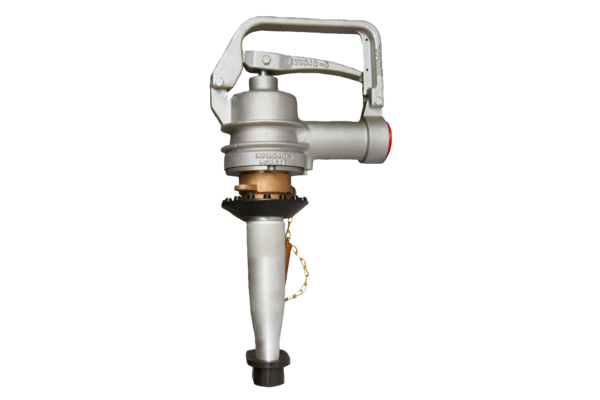

The Liquip AVN042 has been designed as an easy to operate nozzle for delivery of all fuels and aviation fuels (overwing deliveries).

Features & Benefits
  • Equipped with "power assist" dashpot operation to make it as light as a service station nozzle.
  • Lightweight yet heavy duty aluminium body, handle and trigger design.
  • The pressure-balance design allows a small, constant finger force on the trigger no matter what the pump pressure.
  • The trigger action first opens a bullet shaped internal seal to equalise internal nozzle pressure, making it easy to open the product seal.
  • Ease of operation allows for dine, accurate top-up without any surging and splashing.
  • Handle and trigger are easily replaceable.
  • Body has wear ribs to protect it when dragged.
  • Seals are compatible with all Jet and aviation fuels.
  • 4 differnet spouts options available.
  • Optional inlet swivel available.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Trigger Force
    Constant 60N at midpoint

    Flow-through Diameter
    38mm (1½").

    Pressure Drop
    Only 50 kPa pressure drop at 300 LPM with 32mm spout.

    Weight
    2.5kg with 32mm spout.

    Mounting
    38mm (1½" BSPP female thread) inlet.

    Materials
    -Aluminium body, handle, trigger and adaptor outlet.
    -Stainless Steel shaft, pin and spring
    -Viton & Polyurethane seals.

    Dismantling
    Remove capscrew. Unscrew outlet adaptor. This will give access to all internals.

    Ordering Information

    AVN042: 1½" overwing nozzle body.

    AVN-25Z: AVN042 Nozzle comes with 25mm spout.

    AVN-32Z: AVN042 Nozzle comes with 32mm spout.

    AVN-38Z: AVN042 Nozzle comes with 38mm spout.

    AVN-JZ: AVN042 Nozzle comes - Jet Selective.

    Associated Equipment

    Spouts
    ER250: 25mm (reduced) spout.
    ER495: 32mm aluminium spout.
    ER583 : 38mm aluminium spout.
    ER587 JET: Jet-Selective aluminium spout.

    Hose Swivel
    TS57-0058 : 1½" M x 1½" F

    Dust Caps
    GKG25: Buna-N dust cap & spring loaded chain to suit 25mm spout.
    GKG32: Buna-N dust cap & spring loaded chain to suit 32mm spout.
    GKG38: Buna-N dust cap & spring loaded chain to suit 38mm spout.
    GKG38-J: Buna-N dust cap & spring loaded chain to suit Jet selective spout.

    Adaptor
    EG432: Brass adaptor to suit AVN042 overwing nozzle for fitting spouts.

    Strainer
    ES418: Poly/stainless steel 100 mesh strainer to suit EK432 adaptor.
    EG-ASS: Adapter (EG432) + Strainer (ES418).

    Splash Guard
    EK419: Buna-N guard to suit EG432 adaptor.

    Static Clamps
    EKG1200: 1.2m bonding cable and clip.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    AVN042 NOZZLES
    AVN-25Z AVN042 Nozzle comes with 25mm spout.
    AVN-32Z AVN042 Nozzle comes with 32mm spout.
    AVN-38Z AVN042 Nozzle comes with 38mm spout.
    AVN-JZ AVN042 Nozzle comes with Jet Selective spout.
    AVN042 1½" overwing nozzle body.
    AVN042 NOZZLES SPARES - ADAPTORS
    EG432 ADAPTOR BRASS MK12 NOZZLE SPOUT
    AVN042 NOZZLES SPARES - DUST CAPS
    GKG25 DUST CAP 25MM C/W CHAIN
    GKG32 DUST CAP 32MM C/W CHAIN
    GKG38 DUST CAP 38MM C/W CHAIN
    GKG38-J DUST CAP 38MM SUIT JET SPOUT
    AVN042 NOZZLES SPARES - SPLASH GUARDS
    EK419 UMBRELLA BUNA O/WG NOZZLE to suit EK432 ADAPTOR
    AVN042 NOZZLES SPARES - SPOUTS
    ER250 SPOUT ONLY 25MM AVG RED AVN NOZZLE
    ER495 SPOUT ONLY 32MM AVN NOZZLE
    ER583 SPOUT ONLY 38MM SUIT AVN NOZZLE
    ER587 JET SPOUT ONLY JET SELECTIVE (PRESSED)
    AVN042 NOZZLES SPARES - STATIC CLAMPS
    EKG1200 STATIC CLIP BRASS C/W CABLE
    AVN042 NOZZLES SPARES - STRAINERS
    ES418 STRAINER 32MM SUIT MK12 NOZZLE
    AVN042 NOZZLES SPARES - SWIVELS
    TS57-0058 SWIVEL 1½" x 1½" M&F NI/P
